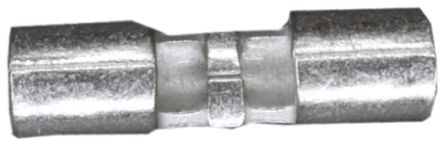

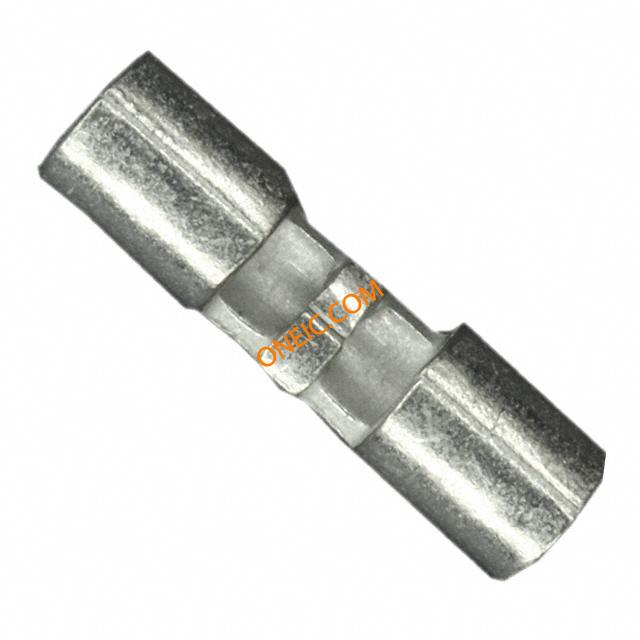

322459
| 制造商 | TE Connectivity Ltd. |
| 描述 | Splice Terminal 14-16AWG 15.01mm 4.19mm Tin Loose Piece Terminals SOLISTRAND SPLC BUTT STRAP 16-14 Splices - Closed Barrel CONN SPLICE BUTT 14-16AWG STRAP Splice Terminal 14-16AWG 15.01mm 4.19mm Tin Loose Piece Product Highlights:SpliceNot SealedSplice Type = ButtButt Splice Type = StrapBody Style = SOLISTRANDSearch Keywords:Wire Termination and Splices, terminals and splices, W crimp, C crimp, TERMINAL, BUTT SPLICE, CRIMP SOLISTRANDSPLICE,SOLISBUTTSTRAP16-14 TE Connectivity SOLISTRAND 系列 带式对接 非绝缘压接接线端子, 镀锡触点, 16 → 14 AWG SPLICE,SOLIS BUTT STRAP 16-14 |
| 分类 |
商业参数
| 产品 | Splices | 产品类别 | Terminals |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | No | ||
机械参数
| 颜色 | None | 表面处理 | Tin |
| 长度 | 15.01 mm | 密封型 | No |
| 重量 | 0 | 材料（通用） | Copper |
| 底座类型 | Strap | 包装方式 | Bulk |
| 厚度 | 0.84 [0.033] | 绝缘类型 | Not Insulated |
| 导线线规 | 14-16 AWG | 端接方式 | Crimp |
| 安装类型 | Wire | 端子类型 | Butt Splice, Inline, Individual Openings |
| 连接器类型 | :Butt Splice | 接触镀层 | Tin |
| 线束直径 | 2 mm | 触头材料 | Copper |
| 绝缘颜色 | :(Not Available) | 包装数量 | Loose Piece |
| 内径（直径） | 2.16 [0.085] | 绝缘高度 | Non-Insulation Support |
| 端接样式 | Crimp | 外径 | 4.19 [0.165] |
| 进线口数 | 2 | 线规或范围 - AWG | 2,050 â 5,180 |
| 线规或范围 - mm² | 1.25-2.00² [16-14] | ||
产品信息
| 类型 | Splice Terminal | 连接器性别 | Female |
| 系列 | :SOLISTRAND | 产品特性 | Brazed Seam, Serrated Mating Area |
| 制造商全称 | AMP | 产品子类型 | Splice |
