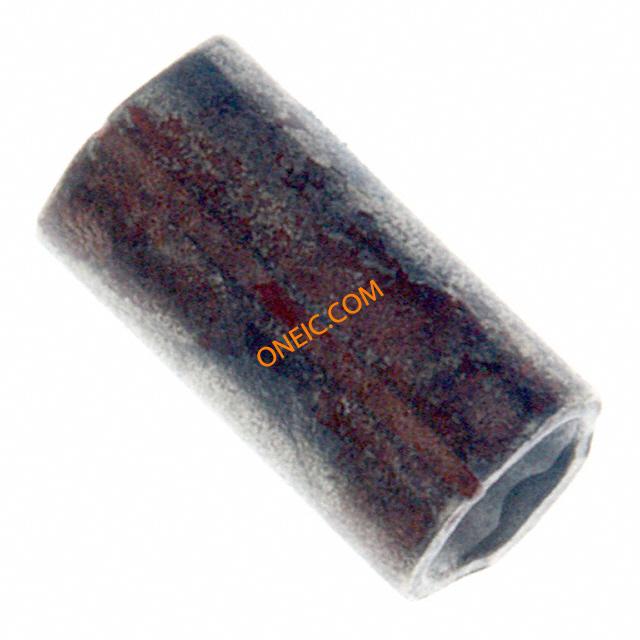

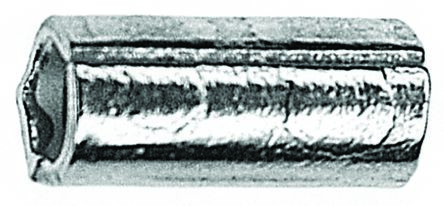

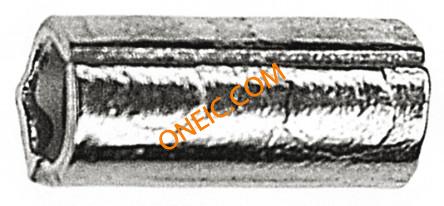

点击放大查看
322347
| 制造商 | TE Connectivity Ltd. |
| 描述 | Splice Terminal 14-16AWG 7.65mm 4.19mm Loose Piece Terminals N/I-BUTT 16-14 STYLE B Splices - Closed Barrel CONN SPLICE 14-16AWG PARLL SOLIS Parallel splice, STRATO-THERM, 649°C Splice Terminal 14-16AWG 7.65mm 4.19mm Loose Piece Product Highlights:SpliceNot SealedSplice Type = ParallelBody Style = SOLISTRAND, STRATO-THERMUninsulatedSearch Keywords:Wire Termination and Splices, terminals and splices, W crimp, C crimp, TERMINAL, PARALLEL SPLICE, CRIMP Splice;Solistrand,Uninsulated,Parallel,Orange TE Connectivity 并联 电线接头连接器, 16 → 14 AWG SPLICE,SOLIS PARA HT 16-14 |
| 分类 |
商业参数
| 产品 | Splices | 产品类别 | Terminals |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366910 |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | No |
电气参数
| 额定电压 | 300 VAC | ||
机械参数
| 颜色 | Orange | 深度 | 4.19 mm |
| 表面处理 | None | 密封型 | No |
| 重量 | 0.002 | 材料（通用） | Nickel |
| 包装方式 | Bulk | 绝缘类型 | Not Insulated |
| 导线线规 | 14-16 AWG | 端接方式 | Crimp |
| 基体材料 | Nickel | 螺柱/焊片尺寸 | :- |
| 端子类型 | Inline, Individual Openings (Parallel) | 连接器类型 | :Parallel Splice |
| 厚度（最大） | 0.76 [0.030] | 触头材料 | Nickel |
| 绝缘颜色 | :Uninsulated | 总长度 | 7.65mm |
| 包装数量 | Loose Piece | 内径（直径） | 2.16 [0.085] |
| 绝缘高度 | Non-Insulation Support | 端接样式 | Crimp |
| 外径 | 4.19 [0.165] | 进线口数 | 2 |
| 线规或范围 - AWG | 2,050 â 5,180 | 线规或范围 - mm² | 1.25-2.00² [16-14] |
产品信息
| 类型 | Splice Terminal | 样式 | B |
| 连接器性别 | Female | 系列 | 322 |
| 产品特性 | Brazed Seam, High Temperature, Serrated Mating Area | 制造商全称 | AMP |
| 产品子类型 | Splice | ||
环境参数
| 温度额定值 | 649 [1200] | ||
