| 制造商 | TE Connectivity Ltd. |

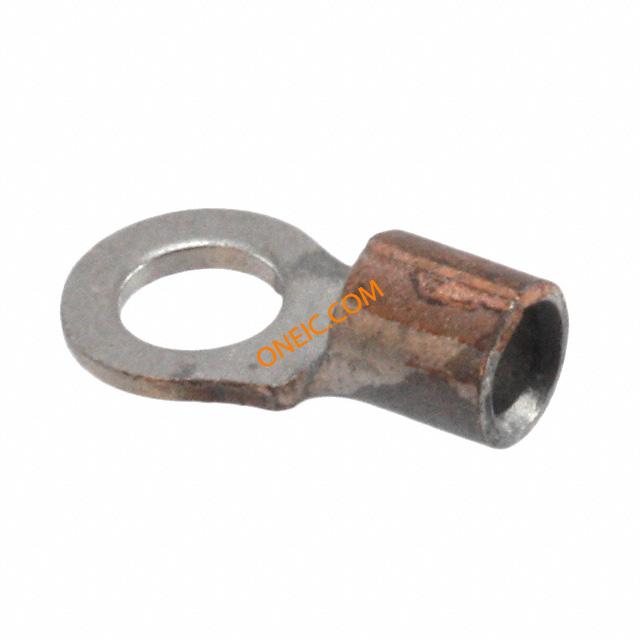

| 描述 | Ring Tongue Terminal 14-16AWG 12.19mm 6.35mm Loose Piece Terminals TERM SOLIS R HT 16-14 6 Ring and Spade Tongue Terminals CONN RING TONGUE 16-14AWG #6 Ring Tongue Terminal 14-16AWG 12.19mm 6.35mm Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = SOLISTRAND, STRATO-THERMBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL, RING TONGUE, #6, CRIMP, ORANGE TERMINAL,SOLIS R HT 16-14 6 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 标准包装数量 | Bulk |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | No | ||
机械参数
| 颜色 | Orange | 形状 | RING-054 |
| 表面处理 | None | 重量 | 0 |
| 材料（通用） | Nickel | 包装方式 | Bulk |
| 厚度 | 0.030" (0.76mm) | 电缆类型 | Regular Wire |
| 重型 | No | 绝缘类型 | Not Insulated |
| 导线线规 | 14-16 AWG | 端接方式 | Crimp |
| 触点形状 | Ring Tongue | 安装类型 | Free Hanging (In-Line) |
| 螺柱/焊片尺寸 | 3.5 mm | 端子类型 | Circular |
| 连接器类型 | :Ring Tongue | 接触镀层 | Unplated |
| 连接器样式 | Straight | 触头材料 | Nickel |
| 绝缘颜色 | :Orange | 总长度 | 0.480" (12.19mm) |
| 包装数量 | Loose Piece | 绝缘高度 | Non-Insulation Support |
| 连接器颜色 | Orange | 接触件尾部长度 | 0.76 [0.030] |
| 外缘宽度 | 0.250" (6.35mm) | 供应商器件封装 | SOLISTRAND, STRATO-THERM |
| 线规或范围 - AWG | 2,050 â 5,180 | 线规或范围 - mm² | 1.25-2.00² [16-14] |
产品信息
| 类型 | Ring Tongue Terminal | 系列 | :Strato-Therm |
| 产品特性 | Brazed Seam, High Temperature, Serrated Termination | 制造商全称 | AMP |
环境参数
| 温度额定值 | 649 [1200] | ||
