点击放大查看

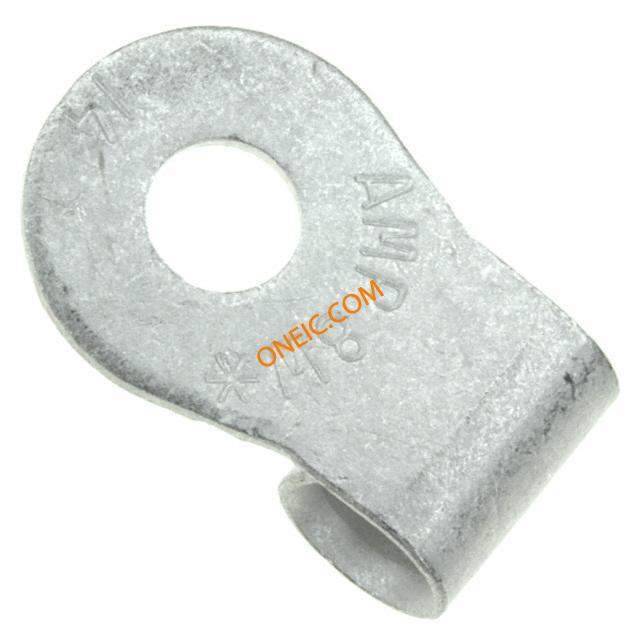

321051

制造商	TE Connectivity Ltd.
描述	Flag Terminal 8AWG 20.09mm 12.7mm Tin Loose Piece Terminals N/I-RING 08AWG TIN #10 Ring and Spade Tongue Terminals CONN RING FLAG 8 AWG #10 SOLIS Flag Terminal 8AWG 20.09mm 12.7mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = FlagBody Style = SOLISTRANDBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL, RING TONGUE, #10, CRIMP TE Connectivity Budget 系列非绝缘镀锡触芯环形压接端子 , M5 (#10) 螺栓, 5mm内环直径, 20.09mm总长 TERMINAL,SOLIS FLAG R 8 10
分类	连接器解决方案压接与焊接端子/接头片形压接端子

对参数有疑问？问 AI 助手

商业参数

产品	Ring Terminals	其他名称	A28059
产品类别	Terminals	标准包装数量	Bulk
工厂包装数量	100

合规参数

RoHS	RoHS Compliant	海关税号	85369010
无铅定义	Not relevant for lead free process	RoHS/ELV合规状态	RoHS compliant, ELV compliant
认证机构标志	No

电气参数

核心类型

Closed Barrel

机械参数

形状	RING-091	表面处理	Tin
重量	0	材料（通用）	Copper
包装方式	Bulk	厚度	1.09 [0.043]
电缆类型	Regular Wire	重型	No
绝缘类型	Not Insulated	导线线规	8 AWG
端接方式	Crimp, Flag	触点形状	Ring Tongue
安装类型	Free Hanging (In-Line), Right Angle	螺柱/焊片尺寸	4.82 mm
端子类型	Circular	连接器类型	:Ring Tongue
接触镀层	Tin	线束直径	4.57 mm
连接器样式	Flag	触头材料	Copper
总长度	0.791" (20.09mm)	包装数量	Loose Piece
绝缘高度	Non-Insulation Support	外缘宽度	0.500" (12.70mm)
供应商器件封装	SOLISTRAND	线规或范围 - AWG	13,100 â 20,800
线规或范围 - mm²	8.00Â² [8]

产品信息

类型	Flag Terminal	连接器性别	Female
系列	321	产品特性	Brazed Seam, Serrated Termination
制造商全称	AMP
