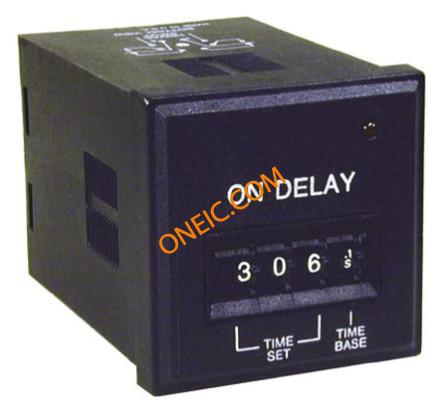

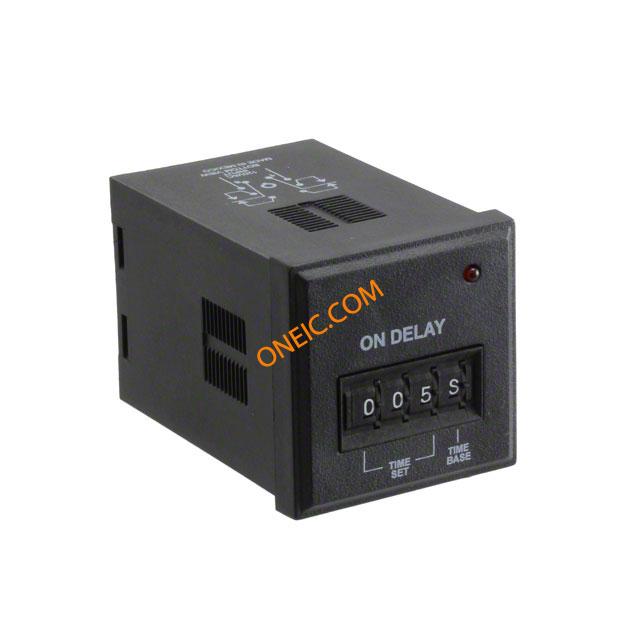

CN1
| 制造商 | |
| 描述 | Time Delay & Timing Relays 120VAC .1S-9990HRS Relay,E-Mech,Timing,OnDelay,DPDT,Cur-Rtg Electromechanical Relay DPDT 10A 120VAC Plug-In Electromechanical Relay DPDT 10A 120VAC Plug-In Product Highlights:CN1 SeriesTime Delay RelayInput Voltage = 120 VACContact Arrangement = 2 Form C, DPDT, 2 C/OContact Rating = 10A @ 30 VDC or 277 VAC TIME DELAY RELAY, DPDT, 9990H, 120VAC RELAY TIME DELAY 120V Relay;E-Mech;Timing;OnDelay;DPDT;Cur-Rtg10A;Ctrl-V120AC;Vol-Rtg120/30AC/DC CN1=TIME DELAY REL |
| 分类 |
商业参数
| 交货时间 | 42 Days | 子类别 | Electromechanical Relay |
| 零件号别名 | 2-1393124-0 | 产品类别 | Time Delay & Timing Relays |
| 标准包装数量 | 6 | 工厂包装数量 | 20 |
合规参数
| RoHS | No | 海关税号 | 91070000 |
电气参数
| 电路 | DPDT (2 Form C) | 延迟时间 | 0.1 Sec ~ 9990 Hrs |
| 输出类型 | Mechanical Relay | 量程（°/s） | 0.1 s to 9990 hr |
| 最大电压 | 120 V ac, 30 V dc | 工作模式 | On Delay |
| 开通延迟时间 | :0.1s | 极数 | :2 |
| 功率 - 冷却 | :3VA | 供电电压 | 120 VAC |
| 最大额定电流 | 10 A | 输入电压（最大） | :120VAC |
| 开关功能/额定值 | DPDT | 启动定时方式 | Input Voltage |
| 触点额定值 @ 电压 | 10 A at 30 VDC, 277 VAC | ||
机械参数
| 重量 | 0.113 | 触点形式 | 2 Form C (DPDT-BM) |
| 安装类型 | Panel, Socket | 端子类型 | Plug, Screw |
| 触头材料 | Silver Cadmium Oxide | 端接样式 | 8 Pin Octal Plug |
| 触点数 | 8 | 典型触点布局 | :DPDT |
产品信息
| 功能 | On-Delay | 继电器类型 | Integrated |
| 行业别名 | 2-1393124-0, CN1 | 其他规格 | :9990h |
| 定时调节方式 | :Thumbwheel Switch | ||
环境参数
| 工作范围 | 0.1 sec → 9990 hrs | 工作温度 | +55°C |
文档与媒体
