点击放大查看

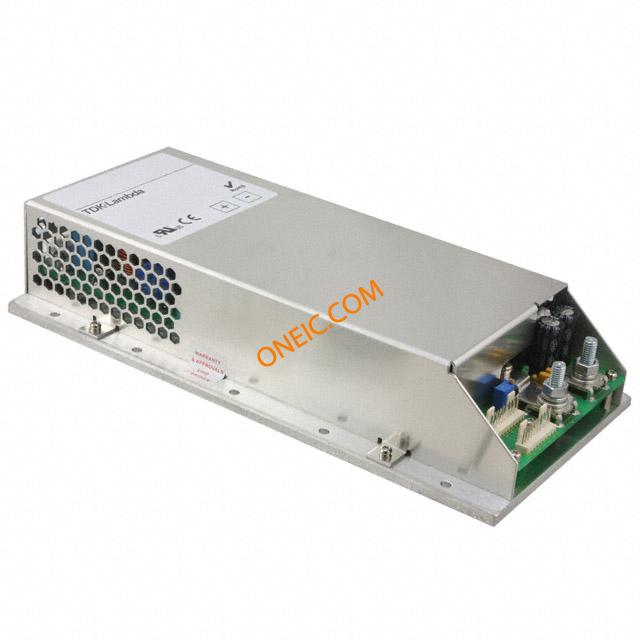

CPFE500F-48-NLC
| 制造商 | TDK-Lambda Corporation |
| 描述 | AC/DC Power Supply Single-OUT 48V 10.5A 504W 10-Pin POWER SUP AC/DC 48V 10.5A 504W Linear and Switching Power Supplies 504W 48V 10.5A Protective coating AC-DC CONV, ENCLOSED, 1 O/P, 504W, 10.5A, 48V |
| 分类 |
商业参数
| 产品 | Switching Supplies | 零件号别名 | CPFE500F-48-NLN |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85044090 |
| 认证机构 | CE, CSA, EN, UL | ||
电气参数
| 频率 | 47 to 63 Hz | 效率 | 85(Typ) % |
| 输出类型 | :Adjustable, Fixed | 最大功率 | 504 W |
| 输出功率 | 504 W | 功率（瓦） | 500W |
| 额定电压 | 90 to 265 V | 输出电流 | 10.5 A |
| 输出数量 | 1 | 供电类型 | Switching (Closed Frame) |
| 最大功率（瓦特） | 504W | 最小输入电压 | 48V |
| 输出电流/通道 | 10.5 A | ||
机械参数
| 宽度 | 5 in | 高度 | 10.35 in |
| 长度 | 4.75 in | 重量 | 0 |
| 安装类型 | Chassis Mount | 安装样式 | Chassis |
| 面板安装类型 | Enclosed | 尺寸/外形 | 10.63" L x 4.96" W x 2.15" H (264.0mm x 126.0mm x 54.5mm) |
产品信息
| 类型 | Regulated | 系列 | CPFE500F |
| 应用领域 | Commercial | 应用 | Commercial |
环境参数
| 工作温度 | -40 to 85 °C | ||
