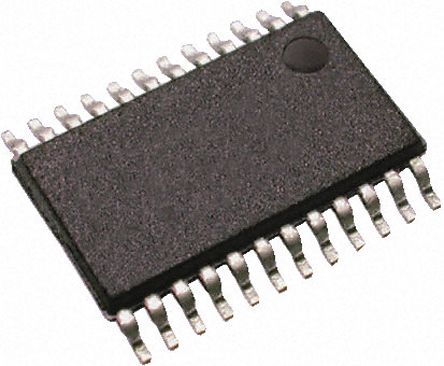

STP16DP05TTR
| 制造商 | STMicroelectronics N.V. |
| 描述 | Low Voltage Constant Current LED Sink Driver 24-Pin TSSOP T/R LED Display Drivers 16-Bit LED Sink w/output error LED DRVR 3.3V/5V 24-Pin TSSOP T/R 16xLEDDr 100mA TSSOP-24 SMD IC LED DRIVER LINEAR 24-TSSOP LED 驱动器 |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 最小起订量 | 2500 | 单位包装 | 2500 |
| 其他名称 | 497-5976-2 | 产品类别 | LED Display Drivers |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 2500 |
| 标准封装名称 | TSSOP | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 汽车级 | NO | 抗辐射加固 | No |
| 无铅定义 | RoHS-conform | ||
电气参数
| 频率 | 30MHz | 额定电压 | 3 |
| 供电电流 | 14.5 mA | 供电电压 | 3 V to 5.5 V |
| 输出数量 | 16 | 输出电流1 | 0.1A |
| 最小输入电压 | 20V | 最小供电电压 | 3 V |
| 输出高/低电流 | 100 mA | 最大恒流负载 | Yes |
机械参数
| 宽度 | 4.5(Max) | 包装方式 | Reel |
| 引脚样式 | Gull-wing | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 封装形式 | 24TSSOP |
| 冷却的封装 | TSSOP | 总长度 | 7.9(Max) |
| 包装数量 | TSSOP | 位数 | 24 |
| 外壳尺寸-插件 | 0.9 | 供应商器件封装 | 24-TSSOP |
产品信息
| 类型 | Linear | 拓扑 | Linear, High Side |
| 匹配码 | STP16DP05TTR | 标准交期 | 10 weeks |
| 内部连接 | Yes | 印刷电路板数量 | 24 |
环境参数
| 测试温度 | -40° | 工作温度 | -40 to 125 °C |
| 结工作温度 | 125C | ||
