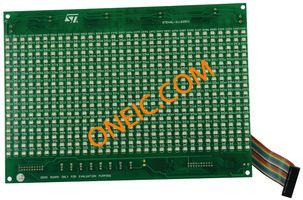

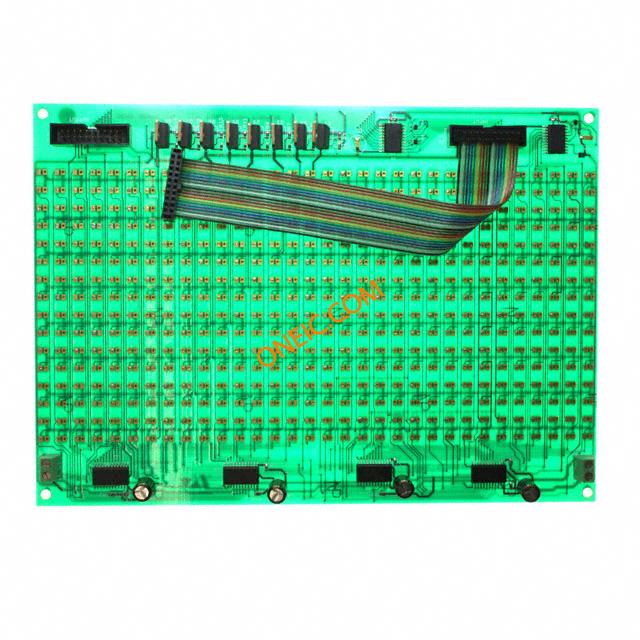

STEVAL-ILL025V1
| 制造商 | STMicroelectronics N.V. |
| 描述 | STP16DP05 Based Display Unit For LED Matrix Display Demonstration System LED Lighting Development Tools STP16DP05 LED Demo Need STEVAL-ILL024V1 LED MATRIX DISPLAY PANEL STP16DP05, LED MATRIX PANEL, DEMO BOARD STP16DP05-Based Display Unit for LED Matrix Display Panel |
| 分类 |
商业参数
| 产品 | Demonstration Boards | 产品类别 | LED Lighting Development Tools |
| 标准包装数量 | Boxed | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85312020 | ||
电气参数
| 调光方式 | :- | 内核大小 | :STP16DP05 |
| 核心类型 | STP16DP05MTR | 供电电压 | 3.5 V |
机械参数
| 重量 | 0 | ||
产品信息
| 类型 | Development Kit | 已删除 | Compliant |
| 产品特性 | :Display Panel has 4 STP16DP05 LED Display Drivers, 2 Buffers, 8 Darlington Pairs, 16x32 LED Matrix | 拓扑 | :- |
| 附件类型 | LED Board | 射频系列/标准 | STP16DP05 |
| 适用产品/相关产品 | LED Matrix Displays | ||
