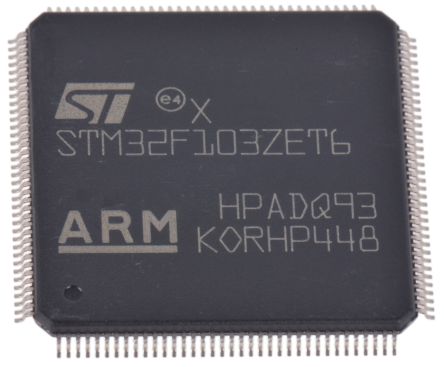

STM32F103ZET6
| 制造商 | STMicroelectronics N.V. |
| 描述 | MCU 32-bit STM32F ARM Cortex M3 RISC 512KB Flash 2.5V/3.3V 144-Pin LQFP Tray MCU 32-bit STM32F1 ARM Cortex M3 RISC 512KB Flash 2.5V/3.3V 144-Pin LQFP Tray Cortex M3 512K LQFP144 85°C MCU ARM 512KB FLASH MEM 144-LQFP STM32F103ZET6, 32 bit Microcontroller ARM Cortex M3 72MHz 512kb Flash, 64kb RAM, USB I2C SPI 144-Pin LQFP ARM Microcontrollers - MCU 32BIT Cortex M3 Performance LINE MCU, 32BIT, CORTEXM3, 512KFLASH, 144LQFP M/CONT.32BITSTM3272MHZ ARM microcontroller; Flash:512kB; 72MHz; SRAM:64kB; LQFP144 STMicroelectronics STM32F 系列 32 bit ARM Cortex M3 MCU, 72MHz, 512 kB ROM 闪存, 64 kB RAM, 1xUSB, 144针 LQFP封装 |
| 分类 |
商业参数
| 最小起订量 | 1 | 单位包装 | 60 |
| 其他名称 | 497-6442 | 产品类别 | ARM Microcontrollers - MCU |
| 标准包装数量 | Trays | 工厂包装数量 | 60 |
| 标准封装名称 | QFP | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85411000 |
| 汽车级 | NO | 零件状态 | :32F103ZE |
| 抗辐射加固 | No | 无铅定义 | RoHS-conform |
| 认证机构 | No | ||
电气参数
| 转速 | 72 MHz | 定时器 | 6 x 16 bit |
| RAM 大小 | 64 KB | 内核大小 | 32-Bit |
| 核心类型 | ARM Cortex M3 | 频率 | 72 MHz |
| 接口 | CAN/I2C/SPI/USART/USB | 时钟速率 | 72 MHz |
| 分辨率 | 16bit | 存储器容量 | 512KByte |
| 存储器类型 | FLASH | I/O 数量 | 112 |
| 位数 | 12/12/12 | 额定电压 | 2 → 3.6 V |
| 看门狗定时器 | 2 | 时钟频率 | :72MHz |
| 数据转换器 | A/D 21x12b; D/A 2x12b | 最大频率 | 72MHz |
| DAC数量 | 2/2 | 振荡器类型 | Internal |
| 供电电压 | 2.5|3.3 V | 数字I/O线数 | 115pins |
| RS-232（422、485） | 1 | 分辨率（位） | 12Bit |
| 串行接口 | 5 | 通道数量 | 2 |
| 程序存储器大小 | 512 KB | 程序存储器类型 | Flash |
| ADC/DAC 数量 | 21/21/21 | 最小输入电压 | 3.6V |
| 最小供电电压 | 2 V | 频率（中心/带宽） | 16bit |
| 最大功耗 | 666 mW | 每元件位数 | 12/12 |
| 供电电压 (Vcc/Vdd) | 2 V ~ 3.6 V | ||
机械参数
| 宽度 | 20.2mm | 高度 | 1.45mm |
| 长度 | 20.2mm | 重量 | 0.0011 |
| 包装方式 | TRAY | 引脚样式 | Gull-wing |
| 端接方式 | :SMD | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :144 |
| 封装形式 | 144LQFP | 冷却的封装 | LQFP |
| 材料表面处理 | :MSL 3 - 168 hours | 总长度 | 20 |
| 包装数量 | LQFP | 尺寸/外形 | 20.2 x 20.2 x 1.45mm |
| 位数 | 144 | 外壳尺寸-插件 | 1.4 |
| 核心数/总线宽度 | 32 Bit | 脉冲宽度失真（最大） | 2(16 bit) (Motor Control) |
产品信息
| SPI | 3 | SPG | 360 |
| USB | 1 | 类型 | ARM microcontroller |
| 系列 | STM32 | 产品特性 | CAN Controller |
| 协议 | 2 | 匹配码 | STM32F103ZET6 |
| CAN编号 | 1 | 闪存大小 | :512KB |
| SPI编号 | 3 | 片内RAM（通道数×位宽） | 3(21-chx12-bit) |
| 外设 | DMA, Motor Control PWM, PDR, POR, PVD, PWM, Temp Sensor, WDT | 架构 | RISC |
| 连接性 | CAN, I²C, IrDA, LIN, SPI, UART/USART, USB | 可编程性 | Yes |
| 核心处理器 | ARM® Cortex™-M3 | 单元数量 | 1 |
| 定时器数量 | 8 | 控制器系列 | :STM32 |
| 标准交期 | 16 weeks | 射频系列/标准 | STM32F |
| DigiKey可编程 | Yes | 印刷电路板数量 | 144 |
| A/D转换器数量 | :3 | ||
环境参数
| 测试温度 | -40°C | 工作温度 | -40 to 85 °C |
| 结工作温度 | 85C | ||
