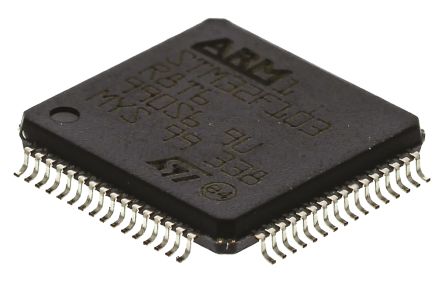

STM32F103R8T6
| 制造商 | STMicroelectronics N.V. |
| 描述 | MCU 32-bit STM32F ARM Cortex M3 RISC 64KB Flash 2.5V/3.3V 64-Pin LQFP Tray ARM Microcontrollers - MCU 32BIT Cortex M3 64KB 20KB RAM 2X12 ADC MCU 32-bit STM32F1 ARM Cortex M3 RISC 64KB Flash 2.5V/3.3V 64-Pin LQFP Tray Cortex M3 64K LQFP64 85°C MCU ARM 64KB FLASH MEM 64-LQFP STM32F103R8T6, 32 bit Microcontroller ARM Cortex M3 72MHz 64kb Flash, 20kb RAM, USB I2C SPI 64-Pin LQFP IC, 32BIT MCU, CORTEX M3, 64K FLASH Microcontroller 32 Bit LQFP-64, STM32F103R8T6, ST STMicroelectronics STM32F 系列 32 bit ARM Cortex M3 MCU, 72MHz, 64 kB ROM 闪存, 20 kB RAM, 1xUSB, 64针 LQFP封装 |
| 分类 |
商业参数
| 最小起订量 | 960 | 单位包装 | 160 |
| 其他名称 | 497-6065 | 产品类别 | ARM Microcontrollers - MCU |
| 标准包装数量 | Trays | 工厂包装数量 | 160 |
| 标准封装名称 | QFP | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85411000 |
| 零件状态 | :32F103R8 | 抗辐射加固 | No |
| 无铅定义 | RoHS-conform | 认证机构 | No |
电气参数
| 转速 | 72 MHz | 定时器 | 3 x 16 bit |
| RAM 大小 | 20 KB | 内核大小 | 32-Bit |
| 核心类型 | ARM Cortex M3 | 频率 | 72 MHz |
| 接口 | CAN/I2C/SPI/USART/USB | 时钟速率 | 72 MHz |
| 分辨率 | 16bit | 存储器容量 | 20 KB |
| 存储器类型 | FLASH | I/O 数量 | 51 |
| 位数 | 12/12 | 额定电压 | 2 → 3.6 V |
| 看门狗定时器 | 2 | 时钟频率 | :72MHz |
| 数据转换器 | A/D 16x12b | 最大频率 | 72MHz |
| DAC数量 | 12 | 振荡器类型 | Internal |
| 供电电压 | 2.5|3.3 V | 数字I/O线数 | 51pins |
| RS-232（422、485） | 1 | 分辨率（位） | 12Bit |
| 串行接口 | 3 | 通道数量 | 16 |
| 程序存储器大小 | 64 KB | 程序存储器类型 | Flash |
| ADC/DAC 数量 | 16/16 | 最小输入电压 | 3.6V |
| 最小供电电压 | 2 V | 频率（中心/带宽） | 16bit |
| 最大功耗 | 444 mW | 每元件位数 | 12 bit |
| 供电电压 (Vcc/Vdd) | 2 V ~ 3.6 V | ||
机械参数
| 宽度 | 10mm | 高度 | 1.45mm |
| 长度 | 10 mm | 重量 | 0.0003 |
| 包装方式 | Tray | 引脚样式 | Gull-wing |
| 端接方式 | :SMD | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :64 |
| 封装形式 | 64LQFP | 冷却的封装 | LQFP |
| 材料表面处理 | :MSL 3 - 168 hours | 总长度 | 10 |
| 包装数量 | LQFP | 尺寸/外形 | 10 x 10 x 1.45mm |
| 位数 | 64 | 外壳尺寸-插件 | 1.4 |
| 核心数/总线宽度 | 32 Bit | 脉冲宽度失真（最大） | 1(16 bit) (Motor Control) |
产品信息
| SPI | 2 | USB | 1 |
| 系列 | STM32F103x | 产品特性 | CAN Controller |
| 协议 | 2 | 基本单元 | :(ARM Cortex) STM32 |
| 匹配码 | STM32F103R8T6 | CAN编号 | 1 |
| 闪存大小 | :64KB | SPI编号 | 2 |
| 片内RAM（通道数×位宽） | 2(16-chx12-bit) | 外设 | DMA, Motor Control PWM, PDR, POR, PVD, PWM, Temp Sensor, WDT |
| 架构 | RISC | 连接性 | CAN, I²C, IrDA, LIN, SPI, UART/USART, USB |
| 可编程性 | Yes | 核心处理器 | ARM® Cortex™-M3 |
| 定时器数量 | 4 | 控制器系列 | :STM32 |
| 标准交期 | 16 weeks | 射频系列/标准 | STM32F |
| DigiKey可编程 | Yes | 印刷电路板数量 | 64 |
| A/D转换器数量 | :16 | ||
环境参数
| 测试温度 | -40°C | 工作温度 | -40 to 85 °C |
| 结工作温度 | 85C | ||
