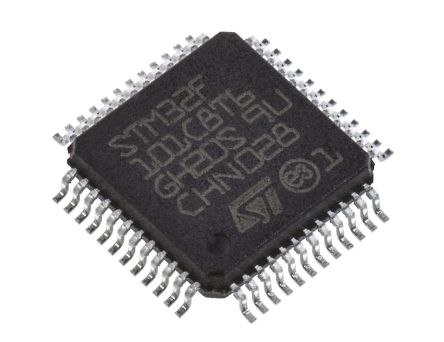

STM32F101C8T6
| 制造商 | STMicroelectronics N.V. |
| 描述 | MCU 32-Bit STM32 ARM Cortex M3 RISC 64KB Flash 2.5V/3.3V 48-Pin LQFP Tray MCU 32-bit STM32F1 ARM Cortex M3 RISC 64KB Flash 2.5V/3.3V 48-Pin LQFP Tray Cortex M3 64K LQFP48 85°C MCU ARM 64KB FLASH/TIMER 48-LQFP STM32F101C8T6, 32 bit Microcontroller ARM Cortex M3 36MHz 64kb Flash, 10kb RAM, I2C SPI 48-Pin LQFP ARM Microcontrollers - MCU 32BIT Cortex M3 64KB 10KB RAM 1X12 ADC IC, 32BIT MCU, CORTEX M3, 64K FLASH ARM microcontroller; Flash:64kB; 36MHz; SRAM:10kB; LQFP48 STMicroelectronics STM32F 系列 32 bit ARM Cortex M3 MCU, 36MHz, 64 kB ROM 闪存, 10 kB RAM, 48针 LQFP封装 |
| 分类 |
商业参数
| 最小起订量 | 1 | 单位包装 | 250 |
| 其他名称 | 497-6055 | 产品类别 | ARM Microcontrollers - MCU |
| 标准包装数量 | Trays | 工厂包装数量 | 250 |
| 标准封装名称 | QFP | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85411000 |
| 零件状态 | :32F101C8 | 抗辐射加固 | No |
| 无铅定义 | RoHS-conform | 认证机构 | No |
电气参数
| 转速 | 36 MHz | 定时器 | 3 x 16 bit |
| RAM 大小 | 10 KB | 内核大小 | 32-Bit |
| 核心类型 | ARM Cortex M3 | 频率 | 36 MHz |
| 接口 | I2C/SPI/USART | 时钟速率 | 36 MHz |
| 分辨率 | 16bit | 存储器容量 | 64KByte |
| 存储器类型 | FLASH | I/O 数量 | 37 |
| 位数 | 12 | 额定电压 | 2 → 3.6 V |
| 看门狗定时器 | 2 | 时钟频率 | :36MHz |
| 数据转换器 | A/D 10x12b | 最大频率 | 36MHz |
| DAC数量 | 12 | 振荡器类型 | Internal |
| 供电电压 | 2.5|3.3 V | 数字I/O线数 | 37pins |
| 分辨率（位） | 12Bit | 串行接口 | 3 |
| 通道数量 | 2 | 程序存储器大小 | 64 KB |
| 程序存储器类型 | Flash | ADC/DAC 数量 | 10 |
| 最小输入电压 | 3.6V | 最小供电电压 | 2 V |
| 频率（中心/带宽） | 16bit | 最大功耗 | 363 mW |
| 每元件位数 | 12 bit | 供电电压 (Vcc/Vdd) | 2 V ~ 3.6 V |
机械参数
| 宽度 | 7.2mm | 高度 | 1.45mm |
| 长度 | 7.2mm | 重量 | 0.0003 |
| 包装方式 | TRAY | 引脚样式 | Gull-wing |
| 端接方式 | :SMD | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :48 |
| 封装形式 | 48LQFP | 冷却的封装 | LQFP |
| 材料表面处理 | :MSL 3 - 168 hours | 总长度 | 7 |
| 包装数量 | LQFP | 尺寸/外形 | 7.2 x 7.2 x 1.45mm |
| 位数 | 48 | 外壳尺寸-插件 | 1.4 |
| 核心数/总线宽度 | 32 Bit | 脉冲宽度失真（最大） | 3(4 x 16 bit) |
产品信息
| SPI | 2 | SPG | 250 |
| USB | 0 | 类型 | ARM microcontroller |
| 系列 | STM32F101x | 协议 | 2 |
| 基本单元 | :(ARM Cortex) STM32 | 匹配码 | STM32F101C8T6 |
| 闪存大小 | :64KB | SPI编号 | 2 |
| 片内RAM（通道数×位宽） | 10-chx12-bit | 外设 | DMA, PDR, POR, PVD, PWM, Temp Sensor, WDT |
| 架构 | RISC | 连接性 | I²C, IrDA, LIN, SPI, UART/USART |
| 可编程性 | Yes | 核心处理器 | ARM® Cortex™-M3 |
| 单元数量 | 1 | 定时器数量 | 3 |
| 控制器系列 | :STM32 | 标准交期 | 16 weeks |
| 射频系列/标准 | STM32 | DigiKey可编程 | Yes |
| 印刷电路板数量 | 48 | A/D转换器数量 | :10 |
环境参数
| 测试温度 | -40°C | 工作温度 | -40 to 85 °C |
| 结工作温度 | 85C | ||
