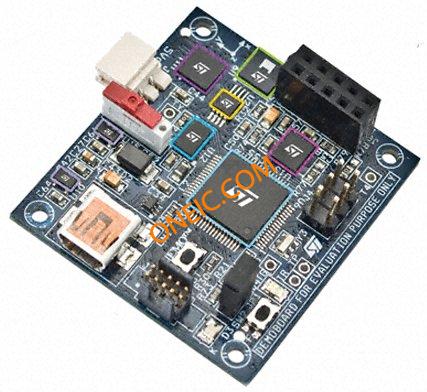

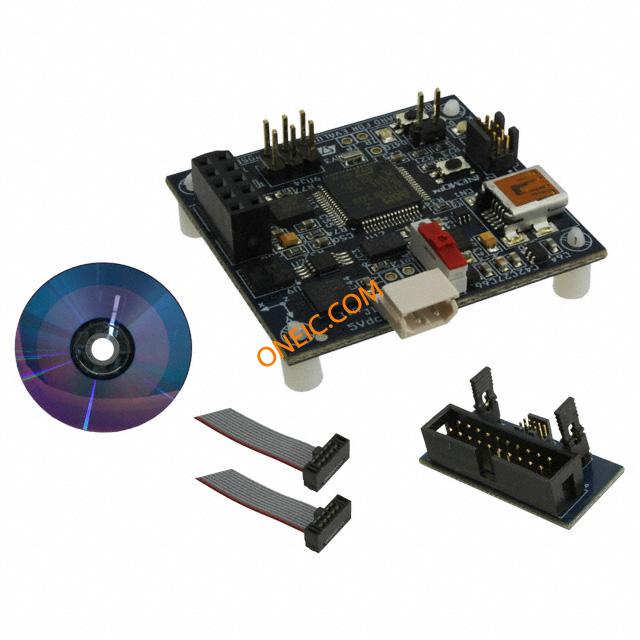

STEVAL-MKI062V2
| 制造商 | |
| 描述 | Demonstration Board Based On MEMS Sensors And The STM32F103RE Acceleration Sensor Development Tools iNEMO Inertial V2 Module STM32 MEMS BOARD EVAL FOR MEMS SENSORS STEVAL-MKI062V2, Demonstration Board, Demonstration Board Inertial MOD V2 Demonstration Board based on MEMS Sensors & STM32F103RE |
| 分类 |
商业参数
| 其他名称 | 497-10508 | 产品类别 | Acceleration Sensor Development Tools |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接口 | CAN, I2C, USB | 灵敏度 | Multiple |
| 传感器类型 | Accelerometer, Gyroscope, Magnetometer, Pressure, Temperature | 感应范围 | ±2g,4g,8g; 300 ~ 1100mbar; 300°/sec; -55 ~125°C |
| 供电电压 | 5V, USB | ||
机械参数
| 包装方式 | Bulk | 连接器用途 | I²C, USB |
产品信息
| 类型 | Development Kit | 内容 | Board |
| 嵌入式 | Yes, MCU, 32-Bit | 产品特性 | User manual http://download.siliconexpert.com/pdfs/2012/1/1/0/26/35/69/st_/auto/cd00... |
| 技术 | Microcontroller | 套件内容 | Demonstration Board |
| 卡标准 | Demonstration Board | 工具类型/特性 | STM32F103RE |
| 射频系列/标准 | STM32F103RE | 使用的IC/零件 | LPR430AL, LY330ALH, LSM303DLH, LPS001DL, STM32F103RE, STLM75 |
环境参数
| 机械寿命 | Obsolete | 工作温度 | + 125 C |
文档与媒体
相关型号
STM32F103RET6
stmicroelectronics
MCU 32-bit STM32F ARM Cortex M3 RISC 512KB Flash 2.5V/3.3V 64-Pin LQFP Tray MCU 32-bit STM32F1 ARM Cortex M3 RISC 512KB Flash 2.5V/3.3V 64-Pin LQFP Tray Cortex M3 512K LQFP64 85°C MCU ARM 512KB FLASH MEM 64-LQFP STM32F103RET6, 32 bit Microcontroller ARM Cortex M3 72MHz 512kb Flash, 64kb RAM, USB I2C SPI 64-Pin LQFP ARM Microcontrollers - MCU 32BIT Cortex M3 Performance LINE MCU, 32BIT, CORTEXM3, 512K FLASH, 64LQFP Microcontroller32BitSTM3272MHz512KB ARM microcontroller; Flash:512kB; 72MHz; SRAM:64kB; LQFP64 Microcontroller 32 Bit LQFP-64, STM32F103RET6, ST STMicroelectronics STM32F 系列 32 bit ARM Cortex M3 MCU, 72MHz, 512 kB ROM 闪存, 64 kB RAM, 1xUSB, 64针 LQFP封装

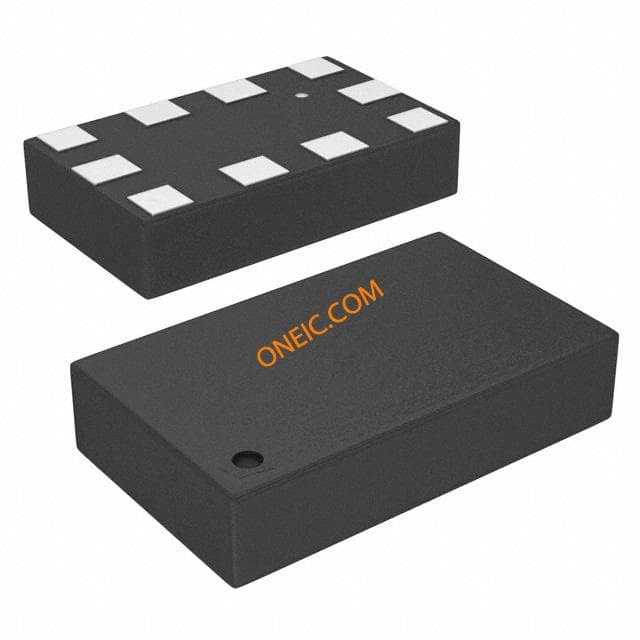

LY330ALH
stmicroelectronics
MEMS Motion Sensor 10-Pin PLGA Tray MEMS Gyroscopes Single Axis ±300°/s 10-Pin PLGA Tray Gyro 1-Axis MEMS-Techn. Analog GYRO 300DEG/S 3.752MV 10LGA Gyroscopes MEMS Motion Sensor 300 Dps Analog Yaw IC, GYROSCOPE, MEMS, 10LGA LY Series 2.7 - 3.6 V ?300 dps Analog Yaw-Rate Gyroscope - LGA-10
2-1634688-0
te connectivity / amp
Conn Shrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER 20POS .100 VERT GOLD TE Connectivity 2-1634688 Series 2.54mm Pitch 20 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings HDR STRAIGHT 20P Conn Shrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Header - PinHeader Type = Pin HeaderAMP-LATCH Product LineLow Profile20 PositionsSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, BOX, STRAIGHT, 20WAY 20way2rowverticalthroughholeheader
54819-0572
molex
Conn USB RCP 5 POS 0.8mm Solder RA SMD 5 Terminal 1 Port Embossed T/R USB Connectors USB Mini-B Recept On-The-Go Rt.Angle Surface mount onthego connector,1A 30V MINI USB TYPE B, RECEPTACLE, SMT MINI USB TYPE B CONNECTOR, RCPT 5POS SMD, FULL REEL Conn; Data; USB; Mini-B; 5 Cir; Rt Angle; SMT; On-The-Go; Gold; LF Socket; USB B mini; on PCBs; SMT; PIN:5; horizontal Molex On-The-Go 系列 直角, 表面安装, USB2.0 B 型 微型 USB 连接器, 插座, 30 V, 1A
LPR430AL
stmicroelectronics
MEMS Motion Sensor 28-Pin LGA Tray GYROSCOPE, MEMS, DUAL AXIS, 28LGA LPR430AL Series 3.6 V ?00?s Dual Axis Pitch and Roll Analog Gyroscope - LGA-28
LSM303DLH
STMicroelectronics
Accelerometer Triple ±2g/±4g/±8g 28-Pin LGA Tray ACCELEROMETER/MAGNETOMETER 28LGA SENSOR, GEOMAGNETIC MODULE, 28LGA
22-05-7025
Molex Connector Corporation
CONN HEADER 2POS 2.5MM R/A TIN Molex 5268 Series 2.5mm Pitch 2 Way 1 Row Right Angle PCB Header, Solder Termination Headers & Wire Housings 2 CKT 2.5MM R/A HDR Conn Shrouded Header HDR 2 POS 2.5mm Solder RA Thru-Hole Bag HEADER, THT, RIGHT ANGLE, 2.5MM, 2WAY Molex SPOX 系列 2.5mm节距 2路 (1排) 直角 PCB 针座, 焊接端接 , 通孔
