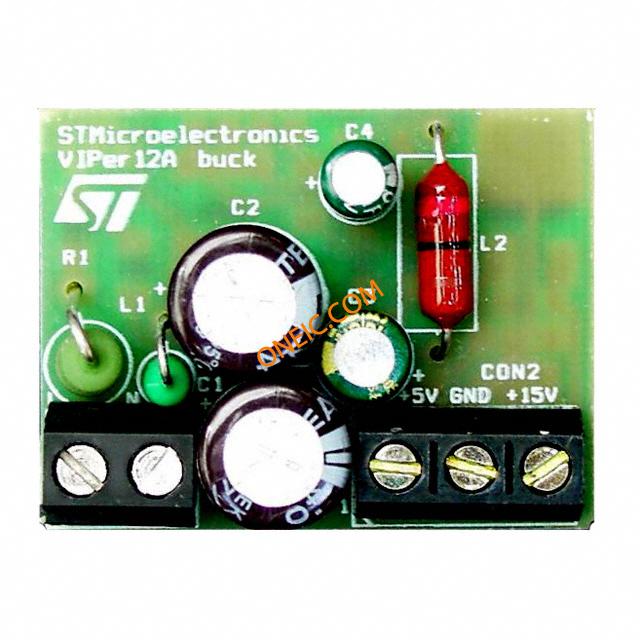

STEVAL-ISA005V1
| 制造商 | |
| 描述 | Evaluation Kit For AC/DC Power Supply Single Out 15V 0.1A 1.8W Power Management IC Development Tools 1.8W Buck Topology Power Supply BOARD POWER SUPPLY 1.8W VIPER12A |
| 分类 |
商业参数
| 产品 | Power Management Modules | 其他名称 | 497-4932 |
| 产品类别 | Power Management IC Development Tools | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | No | 欧盟RoHS | Compliant |
电气参数
| 额定输出功率 | 1.6W | 额定电压 | 85 V to 264 V |
| 输出电流 | 100mA, 60mA | 稳压器拓扑 | Buck |
| 开关频率 | 60kHz | 最小输入电压 | 15V, 5V |
机械参数
| 包装方式 | Bulk | 电路板厚度 | Fully Populated |
产品信息
| 类型 | Development Kit | 内容 | Board |
| 主要用途 | AC/DC, Primary Side | 输出及类型 | 2, Non-Isolated |
| 工具类型/特性 | VIPer12AS | 使用的IC/零件 | VIPer12A |
环境参数
| 机械寿命 | Obsolete | ||
文档与媒体
相关型号
L78L05CD
STMicroelectronics
Linear Regulators - Standard 5.0V 0.1A Positive Standard Regulator Pos 5V 0.1A 8-Pin SO N Tube IC REG LDO 5V 0.1A 8SO L78L05CD, Voltage Regulator, 0.1A 5V, ±10%, 8-Pin, SOIC IC, V REG +5.0V, SMD, 78L05, SO-8-8 VOLTAGEREG.,L78L05CD
VIPER12ADIP
STMicroelectronics
AC/DC Switching Converters 700V 0.36A SMPS IC OFFLINE SWIT PWM SMPS CM 8DIP Primary Switch 8-Pin PDIP Tube
VIPER12AS
STMicroelectronics
AC/DC Switching Converters 700V 0.36A SMPS DISC-BY-STM-12/04 IC OFFLINE SWIT PWM SMPS 8SOIC Primary Switch 8-Pin SO Tube
RGL34J-E3/83
Vishay Intertechnology, Inc.

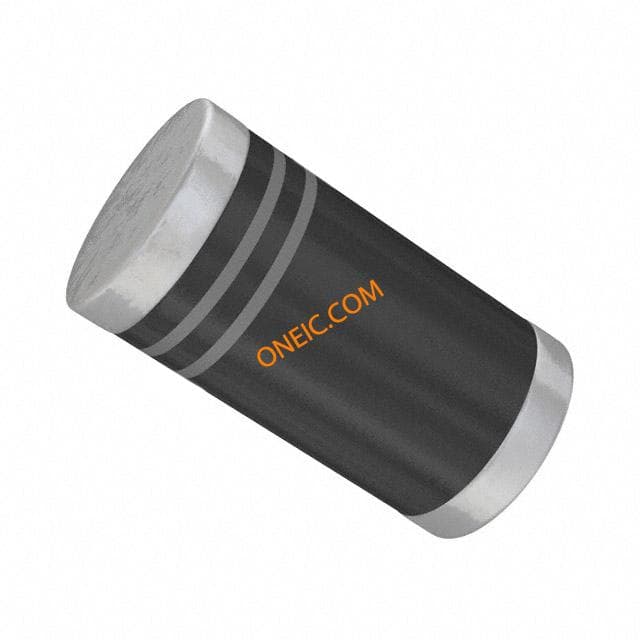

Diode Switching 600V 0.5A 2-Pin DO-213AA T/R SI-DIODE 0,5A 600V MINIMELF DIODE SWITCH 600V 0.5A DO213AA RGL34J-E3/83, Switching Diode, 0.5A 600V, 2-Pin DO-213AA Diodes - General Purpose, Power, Switching 600 Volt 0.5A 250ns 10 Amp IFSM DIODE, FAST, 0.5A, 600V, DO213AA DIODE,RGL34J-E Vishay 开关二极管, 500mA 600V, 2引脚 DO-213AA封装
