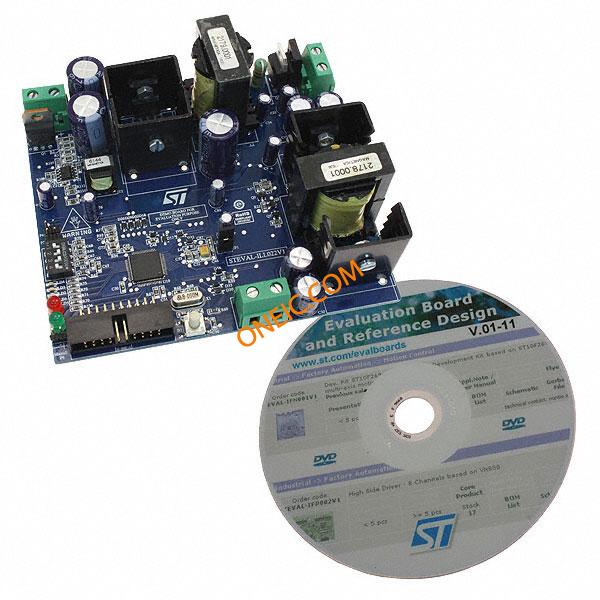

STEVAL-ILL022V1
| 制造商 | |
| 描述 | Street Light With An 80 W Solar Energy Charger Based On The STM32 LED Lighting Development Tools 25W LED Street Light 80W Solar STM32F101R DEMO SOLAR DRIVER CHARGER STM32, LED STREET LIGHT, DEMO BOARD |
| 分类 |
商业参数
| 产品 | Demonstration Boards | 其他名称 | 497-11237 |
| 产品类别 | LED Lighting Development Tools | 标准包装数量 | Boxed |
合规参数
| RoHS | No | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85439000 | ||
电气参数
| 核心类型 | STM32F101Rx | 位数 | :32 bit |
| 供电电压 | 12 V, 24 V | 元件数量 | :STM32 |
机械参数
| 重量 | 0.08 | ||
产品信息
| 类型 | Development Kit | 内容 | Board |
| 嵌入式 | Yes, MCU, 32-Bit | 产品特性 | :MPPT Maximizes Electricity Conversion Efficiency from Solar Panels, Battery Charge Control |
| 套件内容 | :- | 主要用途 | Reference Design, Solar Charger, LED Driver |
| 制造商全称 | :STM32F1xx | 主要特性 | 25W LED Driver, 80W Battery Charger |
| 使用的IC/零件 | STM32F101R | 芯片组制造商 | :STMicroelectronics |
| 次要特性 | Automatic day/night/weather detection, automatic battery/mains switch over | 适用产品/相关产品 | Street Lights |
环境参数
| 机械寿命 | Obsolete | ||
相关型号
LM258D
stmicroelectronics
OP Amp Dual GP ±15V/30V 8-Pin SO N Tube IC OPAMP GP 1.1MHZ 8SO LM258D, Dual Operational Amplifier 1.1MHz 5 to 28V, 8-Pin SO, SOIC Operational Amplifiers - Op Amps Dual Low Power OP Amp Dual GP �15V/30V 8-Pin SO N Tube OP AMP, DUAL, 1.1MHZ, 0.6V/µS, 8SOIC Operational Amplifier Dual 1.1 MHz SO-8, LM258D, ST STMicroelectronics T 双 运算放大器, 1.1MHz, 5 → 28 V, 8针 SOIC 2xOP 1.1MHz 0.6V/µs SO8 _SMD
LM193DR
texas instruments
Comparator Dual ±18V/36V 8-Pin SOIC T/R Comparator ICs Dual Diff GP IC DUAL DIFF COMPARATOR 8-SOIC Comparator Dual �18V/36V 8-Pin SOIC T/R IC, COMPARATOR, DUAL, 8SOIC Dual Differential Comparator 2通道 比较器, 开路集电极输出, 1.3μs, 多种电源电压适用, 8引脚 SOIC封装 Analog Comparators Dual Diff GP
TSC101AILT
stmicroelectronics
SP Amp Current Sense Amp Single 24V 5-Pin SOT-23 T/R I-MonIC SOT23-5 SMD IC OPAMP CUR SENS 500KHZ SOT23-5 TSC101AILT, Current Sensing Amplifier Single 5-Pin SOT-23 Special Purpose Amplifiers HIGH SIDE CURRENT 20V/V AMPLIFIER IC, AMP HISIDE CURR SENSE SOT23-5 Operational amplifier; 500kHz; 4÷24VDC; Channels:1; SOT23-5 单 电流感应放大器, 5针 SOT-23封装 Current Sense Amplifiers HIGH SIDE CURRENT 20V/V AMPLIFIER
STM32F101R8T6
stmicroelectronics
MCU 32-bit STM32F ARM Cortex M3 RISC 64KB Flash 2.5V/3.3V 64-Pin LQFP Tray ARM Microcontrollers - MCU 32BIT Cortex M3 64KB 10KB RAM 1X12 ADC MCU 32-bit STM32F1 ARM Cortex M3 RISC 64KB Flash 2.5V/3.3V 64-Pin LQFP Tray Cortex M3 64K LQFP64 85°C MCU ARM 64KB FLASH/TIMER 64-LQFP STM32F101R8T6, 32 bit Microcontroller ARM Cortex M3 36MHz 64kb Flash, 10kb RAM, I2C SPI 64-Pin LQFP IC, 32BIT MCU, CORTEX M3, 64K FLASH ARM microcontroller; Flash:64kB; 36MHz; SRAM:10kB; LQFP64 Microcontroller 32 Bit LQFP-64, STM32F101R8T6, ST STMicroelectronics STM32F 系列 32 bit ARM Cortex M3 MCU, 36MHz, 64 kB ROM 闪存, 10 kB RAM, 64针 LQFP封装
TS391ILT
stmicroelectronics
Comparator Single ±18V/36V 5-Pin SOT-23 T/R Comparator ICs Lo-Pwr Sngl Voltage IC COMP LO PWR SGL V SOT 23-5L TS391ILT, Single Comparator Open Collector 0.3μs 3, 5, 9, 12, 15, 18, 24, 28V 5-Pin SOT-23 Comparator Single �18V/36V 5-Pin SOT-23 T/R COMPARATOR, SINGLE, MICROPWR, 5SOT23 COMPARATOR, 2-36V, 300NS, 5SOT23 Amplifier;Comparator,LowPowerSignalV,SOT-23-5LPKG 比较器, 开路集电极输出, 0.3μs, 多种电源电压适用, 5引脚 SOT-23封装 Analog Comparators Lo-Pwr Sngl Voltage
STP75NF75
stmicroelectronics
Trans MOSFET N-CH 75V 80A 3-Pin(3+Tab) TO-220 Tube N-CH 75V 80A 11mOhm TO220-3 MOSFET N-CH 75V 80A TO-220 STP75NF75, N-channel MOSFET Transistor 80A 75V, 3-Pin TO-220 MOSFET N-Ch 75 Volt 80 Amp MOSFET, N, TO-220 STP75NF75 MOSFET N, 75 V 80 A 300 W TO-220, STP75NF75, ST STMicroelectronics STripFET II 系列 Si N沟道 MOSFET , 80 A, Vds=75 V, 3针 TO-220封装
SR30-36
RALOSS
SOLAR PANEL, 30W
COLINKEX
EMBEST
ADAPTER, DEBUG, SW/JTAG
