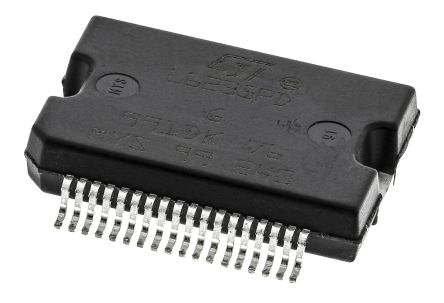

L6235PD
| 制造商 | STMicroelectronics N.V. |
| 描述 | 3-Phase Brushless DC Motor Controller 42V 36-Pin PowerSO Tube 3xHaBr 2.8A 52V PowerSO-36 SMD IC MOTOR DRIVER PAR 36POWERSO L6235PD, Motor Driver, 3-Phase Brushless DC Motor, 12 to 52V, 36, 38-Pin PowerSO Motor / Motion / Ignition Controllers & Drivers Three Phase Motor MOTOR DRVR, DMOS, 3PH BRL, 2.8A, 36PWRSO L6235PD Motor Driver IC PowerSO-36, L6235PD, ST STMicroelectronics 电机驱动器 IC , 用于BLDC 电机, 2.8A, 100kHz, 12 → 52 V |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 最小起订量 | 310 | 单位包装 | 31 |
| 产品类别 | Motor / Motion / Ignition Controllers & Drivers | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 31 | 标准封装名称 | PowerSO |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423990 |
| 汽车级 | NO | 抗辐射加固 | No |
| 无铅定义 | RoHS-conform | ||
电气参数
| 接口 | Parallel | 最大电压 | 52V |
| 负载电压 | 12 V ~ 52 V | 额定电压 | 12 V |
| 输出电流 | 2.8A | 供电电压 | 42 V |
| 输出数量 | :1 | 输出电流1 | 2.8A |
| 最大额定电流 | 10 mA | 最小输入电压 | 12V |
| 电源电压（最大） | 6 V | 最小供电电压 | 52 V |
| 平均整流电流 Io | 10 mA | ||
机械参数
| 宽度 | 11.1mm | 高度 | 3.3mm |
| 长度 | 16mm | 重量 | 0.000204 |
| 包装方式 | Tube | 封装体颜色 | :PowerSO |
| 电机类型 | :Three Phase DC Brushless | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :36 |
| 封装形式 | 36PowerSO | 冷却的封装 | PowerSO |
| 材料表面处理 | :MSL 3 - 168 hours | 包装数量 | PowerSO |
| 尺寸/外形 | 16 x 11.1 x 3.3mm | 位数 | 36 |
| 供应商器件封装 | PowerSO-36 | ||
产品信息
| 类型 | 3-Phase Brushless DC Motor Controller | 功能 | Driver - Fully Integrated, Control and Power Stage |
| 匹配码 | L6235PD | 应用 | General Purpose |
| 标准交期 | 12 weeks | 电机类型 - AC, DC | Brushless DC (BLDC) |
| 电机类型 - 步进 | Multiphase | 输出配置 | 3-Phase Bridge, (1) Single |
| 应用细节 | 3-Phase Brushless DC Motor Driver | ||
环境参数
| 测试温度 | -25°C | 工作温度 | -40 to 150 °C |
| 最高温度限值 | 125°C | 结工作温度 | 150C |
文档与媒体
