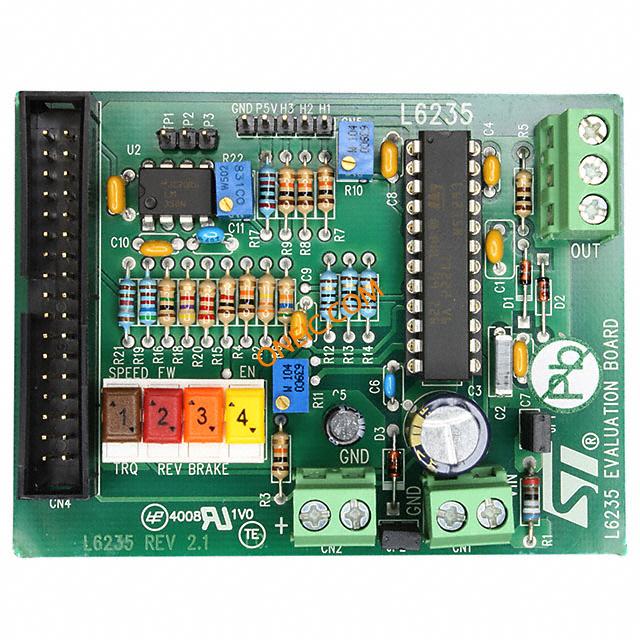

点击放大查看
EVAL6235N
| 制造商 | STMicroelectronics N.V. |
| 描述 | L6235 DMOS Driver For Three-Phase Brushless DC Motor Evaluation Board Power Management IC Development Tools Eval Board for L6235 EvalBoard L6235N 3xHaBr _NO ROHS BOARD MOTOR BRUSHLESS DC L6235 L6235, DMOS DRIVER, BLDC MOTOR, EVALUATION BOARD |
| 分类 |
商业参数
| 最小起订量 | 1 | 产品 | Evaluation Boards |
| 单位包装 | 1 | 产品类别 | Power Management IC Development Tools |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85371099 | 汽车级 | NO |
| 无铅定义 | Leaded | ||
电气参数
| 接口 | Serial | 额定电压 | 12 V to 48 V |
| 输出电流 | 2.64 A | 元件数量 | :L6235 |
机械参数
| 重量 | 1 | 包装方式 | Bulk |
| 封装形式 | EvalBoard | ||
产品信息
| 类型 | Development Kit | 内容 | Board |
| 嵌入式 | No | 功能 | For L6235N three-phase brushless DC motor driver |
| 套件类型 | :Power Management - Motor Control | 匹配码 | EVALL235N |
| 主要用途 | Power Management, Motor Control | 标准交期 | 10 weeks |
| 工具类型/特性 | L6235N | 主要特性 | 3-Ph Brushless DC (BLDC) Motors |
| 射频系列/标准 | L6235 | 使用的IC/零件 | L6235 |
| 芯片组制造商 | :STMicroelectronics | 次要特性 | Overvoltage, Short-Circuit and Thermal Protection |
| 应用细节 | EvalBoard | 适用产品/相关产品 | ST7 Interface Board |
文档与媒体
相关型号
EVALPRACTISPIN
stmicroelectronics
L6235 DMOS Driver For Three-Phase Brushless DC Motor Evaluation Board Power Management IC Development Tools PractiSpin Eval Brd L62xx Family EVALUATION BOARD PRACTISPIN INTERFACE BOARD, MOTOR CONTROL, PRACTISPIN
L6235PD013TR
stmicroelectronics
3-Phase Brushless DC Motor Controller 42V 36-Pin PowerSO T/R 3xHaBr 2.8A 52V PowerSO-36 SMD IC MOTOR DRIVER PAR 36POWERSO Motor / Motion / Ignition Controllers & Drivers Three Phase Motor
L6235PD
stmicroelectronics
3-Phase Brushless DC Motor Controller 42V 36-Pin PowerSO Tube 3xHaBr 2.8A 52V PowerSO-36 SMD IC MOTOR DRIVER PAR 36POWERSO L6235PD, Motor Driver, 3-Phase Brushless DC Motor, 12 to 52V, 36, 38-Pin PowerSO Motor / Motion / Ignition Controllers & Drivers Three Phase Motor MOTOR DRVR, DMOS, 3PH BRL, 2.8A, 36PWRSO L6235PD Motor Driver IC PowerSO-36, L6235PD, ST STMicroelectronics 电机驱动器 IC , 用于BLDC 电机, 2.8A, 100kHz, 12 → 52 V
L6235D013TR
stmicroelectronics
3-Phase Brushless DC Motor Controller 42V 24-Pin SO T/R 3-PH BLDC MOTOR IC MOTOR DRIVER PAR 24SO Motor / Motion / Ignition Controllers & Drivers Three Phase Motor
L6235N
stmicroelectronics
3-Phase Brushless DC Motor Controller 42V 24-Pin Power PDIP Tube 3-PH BLDC MOTOR IC MOTOR DRIVER PAR 24POWERDIP L6235N, Brushless Motor Controller, 3-Phase Brushless DC Motor, 12 to 52V, 24-Pin Power PDIP Motor / Motion / Ignition Controllers & Drivers Three Phase Motor DC MOTOR DRIVER THREE-PHASE, DIP24 DMOSDriverfor3-Ph.BrushlessDCMotor Driver; PWM controller; 7.1A; 52V; Channels:3; DIP24 STMicroelectronics 电机驱动器 IC , 用于BLDC 电机, 2.8A, 12 → 52 V
L6235D
stmicroelectronics
3-Phase Brushless DC Motor Controller 42V 24-Pin SO Tube Motor / Motion / Ignition Controllers & Drivers Three Phase Motor 3xHaBr 2.8A 52V SO-24 SMD IC MOTOR DRIVER PAR 24SO L6235D, Motor Driver, 3-Phase Brushless DC Motor, 12 to 52V, 24-Pin SOIC DC MOTOR DRIVER THREE-PHASE, SMD L6235D STMicroelectronics 电机驱动器 IC , 用于BLDC 电机, 2.8A, 12 → 52 V
