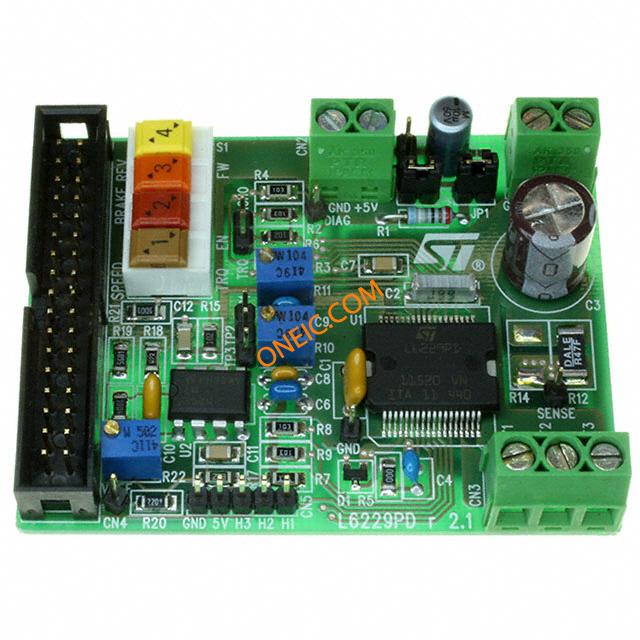

EVAL6229PD
| 制造商 | |
| 描述 | Evaluation Board For L6235 Three Phase Brushless DC Motor Driver Power Management IC Development Tools EVAL BOARD FOR L6229PD EvalBoard L6229PD 3xHaBr _NO ROHS EVAL BOARD FOR L6229PD SOIC L6229, DMOS DRIVER, BLDC MOTOR, EVALUATION BOARD |
| 分类 |
商业参数
| 最小起订量 | 1 | 产品 | Power Management Development Tools |
| 单位包装 | 1 | 其他名称 | 497-5491 |
| 产品类别 | Power Management IC Development Tools | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85371099 | 汽车级 | NO |
| 无铅定义 | Leaded | ||
电气参数
| 额定电压 | 8 V to 52 V | 输出电流 | 2.8 A |
| 元件数量 | :L6229 | ||
机械参数
| 重量 | 1 | 包装方式 | Bulk |
| 封装形式 | EvalBoard | ||
产品信息
| 类型 | Development Kit | 内容 | Board |
| 嵌入式 | No | 套件类型 | :Power Management - Motor Control |
| 匹配码 | EVALL6229PD | 主要用途 | Power Management, Motor Control |
| 标准交期 | 10 weeks | 工具类型/特性 | L6235 |
| 主要特性 | 3-Ph BLDC, 8 ~ 52V Output, PWM Current Control, Brake Function | 使用的IC/零件 | L6229PD SOIC |
| 芯片组制造商 | :STMicroelectronics | 次要特性 | Over Current, Cross Conduction and Temperature Protection |
| 应用细节 | EvalBoard | ||
