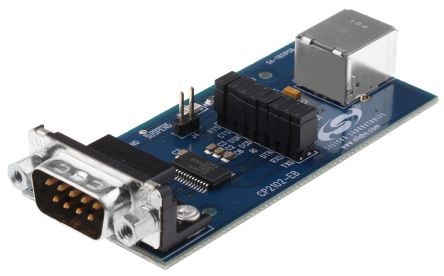

CP2102EK
| 制造商 | |
| 描述 | Evaluation Kit Contains CP2103 Evaluation Board And Drivers And Product Information CD-Rom Interface Development Tools for CP2102 Enhanced USB-UART Bridge Chip KIT EVALUATION FOR CP2102 CP2102EK, Development Kit, USB EVAL KIT, CP2102, USB TO UART Module: cable integrated; RS232,USB Silicon Labs CP2102 USB 至 UART接口 评估测试板 |
| 分类 |
商业参数
| 产品 | Evaluation Kits | 其他名称 | 336-1161 |
| 产品类别 | Interface Development Tools | 标准包装数量 | Boxed |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Supplier Unconfirmed | 海关税号 | 85423190 |
| 不合规状态 | N | ||
电气参数
| 核心类型 | :(Not Available) | 接口 | RS-232, USB |
| 供电电压 | via USB | 元件数量 | :CP2102 |
机械参数
| 重量 | 0.001764 oz | ||
产品信息
| 类型 | Development Kit | 系列 | CP2102 |
| 内容 | Board, Cables, Software | 嵌入式 | No |
| 产品特性 | :(Not Applicable) | 功能 | USB to UART bridge |

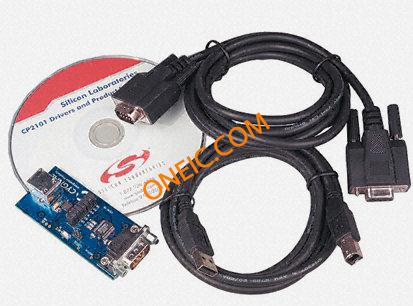

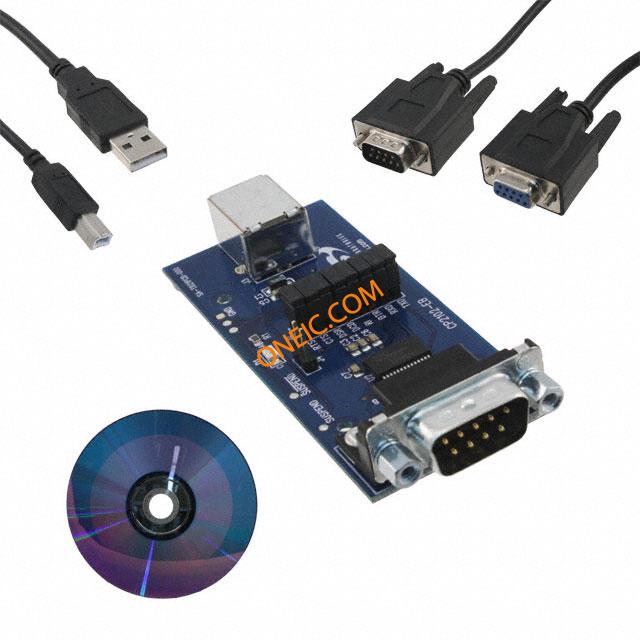

| 技术 | USB | 套件内容 | CD Driver (VCP), Evaluation Kit for CP2102, RS232 Cable, USB Cable |
| 主要用途 | Interface, USB 2.0 to UART (RS232) Bridge | 制造商全称 | :(Not Available) |
| 卡标准 | Development Kit | 通信接口 | cable integrated |
| 单元数量 | 1 | 工具类型/特性 | CP2102 |
| 主要特性 | Full Speed, 300 bps to 1 Mbps | 射频系列/标准 | CP2102 |
| 使用的IC/零件 | CP2102 | 芯片组制造商 | :Silicon Laboratories |
| 次要特性 | Software, Connector Provides Direct Access to UART Signals | 支持MCU系列 | :CP210x |
| 保密协议 | N | ||
