SHT25
| 制造商 | Sensirion AG |
| 描述 | SHT25, 12bit Temperature Sensor ±1.8%RH Serial-I2C 2.1 to 3.6V 6-Pin DFN SENSOR, HUMIDITY & TEMP, 3X3MM, 1.8% HUMIDITY SENSOR, 0-100% RH, DFN-6, FULL REEL Sensor: temperature and humidity sensor; Range:0÷100% RH; ±0,2% Sensirion , 12 位 温度和湿度传感器, ±1.8%RH, 串行 - I2C接口, 6针 DFN封装 |
| 分类 |
合规参数
| SVHC | :No SVHC (20-Jun-2013) | 海关税号 | 90261089 |
电气参数
| 输出端 | :I2C digital, PWM and SDM/analog Volt interface | 精度 | ±1.8%RH |
| 接口 | Serial-I2C | 容差 | ±0,2% |
| 分辨率 | 12 bit | 输出类型 | Digital |
| 灵敏度 | :± 1% | 传感器类型 | :Digital |
| 响应时间 | :8s | 额定电压 | 2.1 V |
| 输出电流 | :300µA | 供电电压 | :2.1VDC |
| 最小供电电压 | 3.6 V | 供电电压 (Vcc/Vdd) | :2.1V DC to 3.6V DC |
机械参数
| 宽度 | 3mm | 高度 | 1.1mm |
| 长度 | 3mm | 重量 | 0.000025 |
| 安装类型 | Surface Mount | 连接器类型 | :SMD |
| 引脚数 | :6 | 封装形式 | DFN6 |
| 冷却的封装 | DFN | 材料表面处理 | :- |
| 包装数量 | 10 | 尺寸/外形 | 3 x 3 x 1.1mm |
| 位数 | 6 | ||
产品信息
| SPG | 10 | 原理图 | see |
| 测量范围 | 0...100% RH | 单元数量 | 1 |
| 关联项目 | SENSIRION-SF2 | ||
环境参数
| 湿度范围 | :0% to 100% Relative Humidity | 工作温度 | +125 °C |
相关型号
00DSA
Erem
Erem 120mm Anti-Magnetic Stainless Steel Straight; Pointed; Inside Serrated Tweezers Anti-Acid TWEEZER

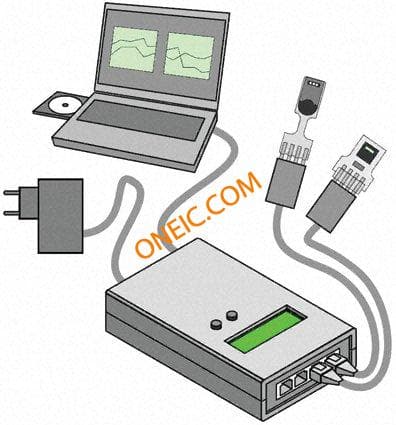

EK-H4
Sensirion
EK-H4, Evaluation Board SHTXX, HUMIDITY SENSORS, EVAL KIT EvalKitforHumiditySensorsSHTxx Sensirion 模拟开发套件
SHT25
Sensirion
SHT25, 12bit Temperature Sensor ±1.8%RH Serial-I2C 2.1 to 3.6V 6-Pin DFN SENSOR, HUMIDITY & TEMP, 3X3MM, 1.8% HUMIDITY SENSOR, 0-100% RH, DFN-6, FULL REEL Sensor: temperature and humidity sensor; Range:0÷100% RH; ±0,2% Sensirion , 12 位 温度和湿度传感器, ±1.8%RH, 串行 - I2C接口, 6针 DFN封装
SHT21
Sensirion
Sensor Humidity & Temp 2%RH I2C DFN6 SENSOR, HUMIDITY & TEMP, 3X3MM, 2% SENSOR, HUMIDITY & TEMP, 0-100% RH, DFN6, FULL REEL Sensirion , 8 → 14 位 温度和湿度传感器, ±0.3 °C, ±2 %RH, 串行 - I2C接口, 6针 DFN封装

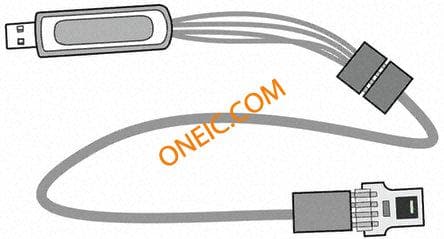

EK-H5
