点击放大查看

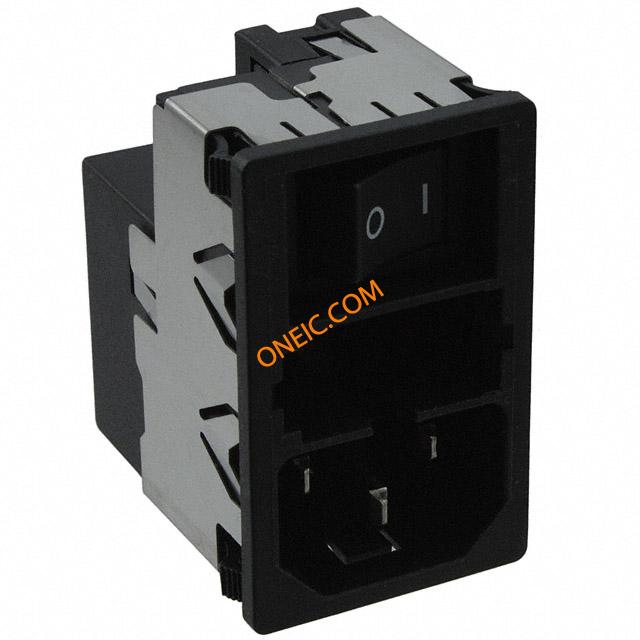

KMF1.1193.11
| 制造商 | |
| 描述 | Power Entry Module Filtered M 3 POS 250VAC 10A Switch/Fuse ST 1 Port KMF G-STECKER-KOMBI MIT FILTER 10A M5 MOD PWR MED FLTR 10A 2PL QC PNL AC Power Entry Modules 10A 2-P SW 2-P FUSE 10A/250VAC No/Drawer CONNECTOR, IEC, 10A, 250V KMFPOWERENTRYMODULEW.FILTER10AM5 Switch-fuse |
| 分类 |
商业参数
| 最小起订量 | 20 | 产品 | Inlets |
| 单位包装 | 20 | 产品类别 | AC Power Entry Modules |
| 标准包装数量 | Bulk | 工厂包装数量 | 20 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85369010 | 保护特性 | switch-fuse |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 电流 | 10A | 电压 | 125/250VAC |
| 滤波器类型 | Medical | 额定电压 | 250 VAC |
| 极数 | 2(Fuse),2(Switch) | 开关功能 | Switched |
| 漏电流 | μA | 介电强度 | >1.7(L-N)/>2.7(L/N-PE)kVDC |
| 最大额定电流 | 10 A | 最小输入电压 | 250 Vac |
机械参数
| 深度 | 40.35 mm | 宽度 | 30.5 mm |
| 高度 | 25.7 mm | 长度 | 50 mm |
| 重量 | 2.081164 oz | 交流输出口 | :1 |
| 端接方式 | Solder Lug | 安装类型 | Snap-In |
| 连接器类型 | IEC/EN 60320-1/C14|UL 498|CSA C22.2 | 安装样式 | Snap In |
| 保险丝座类型 | Sold Separately | 壳体材料 | Thermoplastic |
| 端接样式 | Quick Connect | 触点数 | 3 |
| 接触件端接 | :Quick Connect | 第一连接器安装类型 | :Panel |
产品信息
| 类型 | Filtered | 带保险丝 | Yes |
| 连接器性别 | :Plug | 系列 | KMF |
| 产品特性 | Fuse Holder, Shielded, Switch On/Off, Non-Illuminated | 单元数量 | 1 |
| 固件版本 | Medical | ||
环境参数
| 工作温度 | - 25 C to + 85 C | ||
