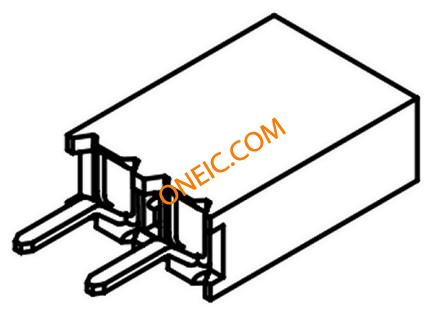

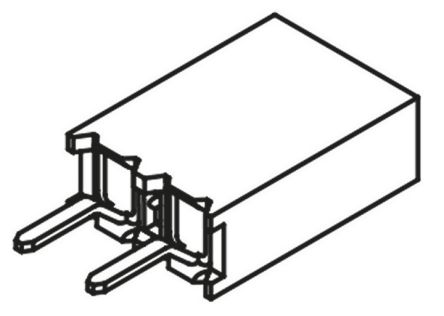

BCS-102-L-S-TE

点击放大查看

BCS-102-L-S-TE

制造商
Samtec, Inc.
描述Conn Socket Strip SKT 2 POS 2.54mm Solder ST Thru-Hole CONN RCPT 2POS .100" SNGL VERT Samtec BCS Series 2.54mm 2 Way 1 Row Straight PCB Socket Through Hole Board to Board RECEPTACLE, 2.54MM, VERT, 2WAY Samtec BCS 系列 2路 直 2.54mm节距 通孔 印刷电路板插座, 板对板
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

交货时间20 Days其他名称SAM1011-02
子类别Connector Headers and PCB Receptacles标准包装数量Bulk

合规参数

RoHSLead free / RoHS CompliantSVHC:No SVHC (20-Jun-2013)
海关税号85369010

电气参数

额定电压475 V ac最大额定电流:3A

机械参数

颜色Black间距0.100" (2.54mm)
宽度:5.08mm重量0.001
包装方式Bulk端接方式Solder
引脚间距:2.54mm安装类型Through Hole
连接器类型Receptacle接触镀层Gold Over Nickel
排数1触头材料Phosphor Bronze
连接器颜色:Black板面高度0.290" (7.37mm)
触点数2接触件端接:Through Hole Vertical
位数2接触镀层厚度10µin (0.25µm)

产品信息

类型Socket Strip连接器性别SKT
系列BCS加载位置数All

环境参数

工作温度:125°C

文档与媒体

PDF 文档
bcs.pdf
PDF 文档
81213.pdf

相关型号

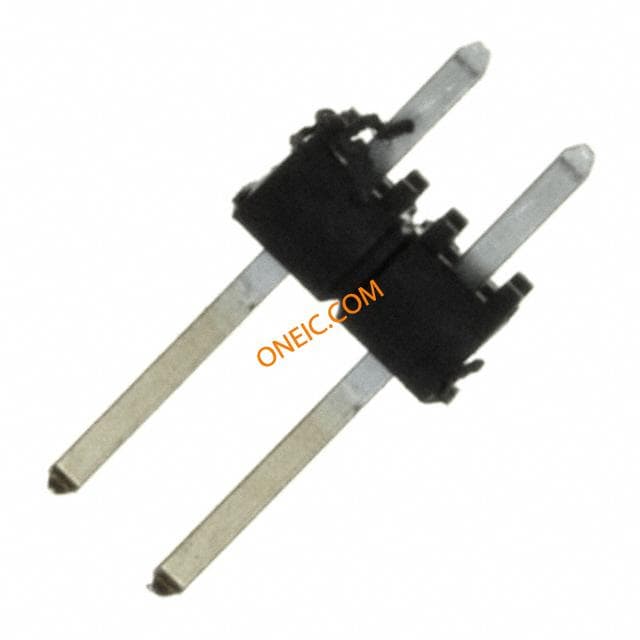

TSW-102-07-G-S
