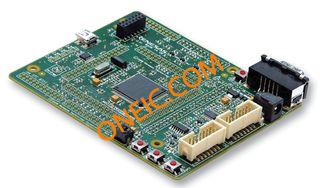

点击放大查看
R0K561664S001BE
| 制造商 | |
| 描述 | Starter Kit For H8SX/1664 KIT STARTER FOR H8SX/1651 R5F61664N50FPV, E10A EMULATOR, KIT |
| 分类 |
商业参数
| 标准包装数量 | Trays | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Supplier Unconfirmed | 海关税号 | 85423190 |
电气参数
| 核心类型 | :H8SX | 元件数量 | :R5F61664N50FPV |
机械参数
| 重量 | 0.4 | ||
产品信息
| 类型 | Development Kit | 内容 | CPU Board, LCD Display Module, E10A Emulator, Cable, QuickStart Guide and CD-ROM |
| 产品特性 | :Coding and Debugging, E10A Emulator, RS232 Serial Connection | 套件内容 | :Board |
| 制造商全称 | :H8SX/1664 | 工具类型/特性 | :Starter Kit |
| 芯片组制造商 | :Renesas | 支持MCU系列 | :H8SX/1664F |
| 适用产品/相关产品 | H8SX/1651 | ||
