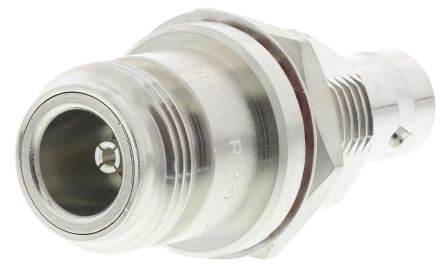

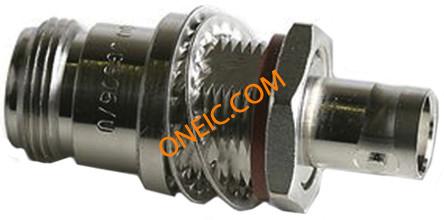

点击放大查看
R191422000
| 制造商 | Radiall S.A. |
| 描述 | Conn BNC-Type N Adapter F/F 0Hz to 4GHz 50Ohm ST Silver Over Copper NiPt sealed female BNC-female N adaptor RF Adapters - Between Series BNC(F)_N(F) STR BHP ADAPTER NC NA ADAPTOR, BNC FEM-N JACK, BULKHEAD Radiall 直 50Ω 射频适配器 , 4GHz, BNC 插座 到 N 插座 |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Not Applicable | 海关税号 | 85369010 |
电气参数
| 频率 | 0 to 4 GHz | 阻抗 | 50 Ohm |
| 最大频率 | :4GHz | 频率范围 | 4 GHz |
机械参数
| 长度 | 44mm | 重量 | 0.044 |
| 基体材料 | Brass | 安装类型 | Straight |
| 外壳镀层 | Nickel | 连接器类型 | BNC N |
| 接触镀层 | Silver Over Copper | 触头材料 | Beryllium Copper |
| 第一连接器极性 | Jack (Female) | 第二连接器性别 | Jack (Female) |
| 供应商器件封装 | :Straight Bulkhead | 第一连接器安装特征 | :Jack |
产品信息
| 类型 | BNC-Type N Adapter | 连接器性别 | F/F |
| 射频类型 | N | 适配器类型 | N Socket to BNC Socket |
| 射频系列/标准 | R191422000 | 转换端（适配器端） | :BNC |
| 转换自（适配器端） | :BNC Coaxial | ||
