点击放大查看
R191332000
| 制造商 | Radiall S.A. |
| 描述 | Conn Type N-SMA Adapter F/F 0Hz to 11GHz 50Ohm ST Panel Mount Gold N/SMA ADAPTOR RF Adapters - Between Series SMA(F)_N(F) STR BHP ADAPTER NC NA ADAPTOR, N FEM-SMA FEM, HERMETIC N/SMAADAPTOR Radiall镀镍 直 50Ω 射频适配器 , 0 → 11GHz, N 型 插座 到 SMA 插座 |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
电气参数
| 频率 | 0 to 11 GHz | 阻抗 | 50 Ohm |
| 最大频率 | :11GHz | 频率范围 | 11 GHz |
机械参数
| 长度 | 31.6mm | 重量 | 0.038 |
| 基体材料 | Brass | 安装类型 | Panel Mount |
| 外壳镀层 | Nickel | 连接器类型 | SMA N |
| 接触镀层 | Gold | 触头材料 | Beryllium Copper |
| 第一连接器极性 | Jack (Female) | 第二连接器性别 | Jack (Female) |
| 供应商器件封装 | :Straight Bulkhead | 第一连接器安装特征 | :Socket |
产品信息
| 类型 | Type N-SMA Adapter | 连接器性别 | F/F |
| 射频类型 | N | 适配器类型 | Type N |
| 射频系列/标准 | Type N/SMA | 转换端（适配器端） | :N |
| 转换自（适配器端） | :N Coaxial | ||
文档与媒体
相关型号
R191511000
radiall
Conn TNC-Type N Adapter M/F 0Hz to 11GHz 50Ohm ST Chromium Over Nickel N/TNC ADAPTOR RF Adapters - Between Series N(F)_TNC(M) STR NA ADAPTER NC NA ADAPTOR, N JACK-TNC PLUG Radiall 直 50Ω 射频适配器 , 0 → 11GHz, TNC 插头 到 N 型 插座
R191331000
radiall
Conn Type N-SMA Adapter F/F 0Hz to 11GHz 50Ohm ST Gold N/SMA ADAPTOR RF Adapters - Between Series SMA(F)_N(F) STR NA ADAPTER NC NA ADAPTOR, N JACK-SMA JACK N/SMAADAPTOR Radiall 直 50Ω 射频适配器 , 0 → 11GHz, N 型 插座 到 SMA 插座
R191424000
radiall
Conn BNC-Type N Adapter F/F 0Hz to 4GHz 50Ohm ST Panel Mount Gold Over Nickel NiPt female BNC-female N adaptor w/plate RF Adapters - Between Series BNC(F)_N(F) STR SQF ADAPTER NC NA ADAPTOR, BNC FEM-N FEM, SQ FLANGED Radiall 直 50Ω 射频适配器 , 0 → 4GHz, BNC 插座 到 N 型 插座
R191327000
radiall
Conn Type N-SMA Adapter F/M 0Hz to 11GHz 50Ohm ST Gold Over Nickel N SMA ADAPTOR RF Adapters - Between Series SMA(M)_N(F) STR NA ADAPTER NC NA ADAPTOR, N JACK-SMA PLUG STRAIGHT NSMAADAPTOR Radiall 直 50Ω 射频适配器 , 0 → 11GHz, N 型 插座 到 SMA 插头
R191381000
radiall
Conn Type N-SMA Adapter F/F 0Hz to 11GHz 50Ohm ST Gold N/SMA ADAPTOR RF Adapters - Between Series SMA(F)_N(F) STR SQF ADAPTER NC NA ADAPTOR, N FEM-SMA FEM, SQ FLANGED N/SMAADAPTOR Radiall 直 50Ω 射频适配器 , 0 → 11GHz, N 型 插座 到 SMA 插座
R191419000
radiall
Conn Type N-BNC Adapter F/M 0Hz to 4GHz 50Ohm ST Gold Over Nickel Radiall NiPt male BNC - female N adaptor RF Adapters - Between Series N(F)_BNC(M) STR NA ADAPTER NC NA ADAPTOR, N JACK-BNC PLUG Radiall 直 50Ω 射频适配器 , 4GHz, N 插座 到 BNC 插头

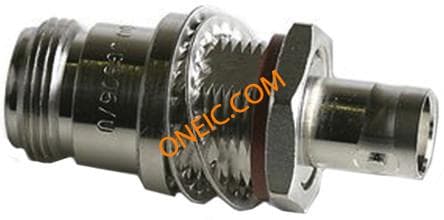

R191422000
