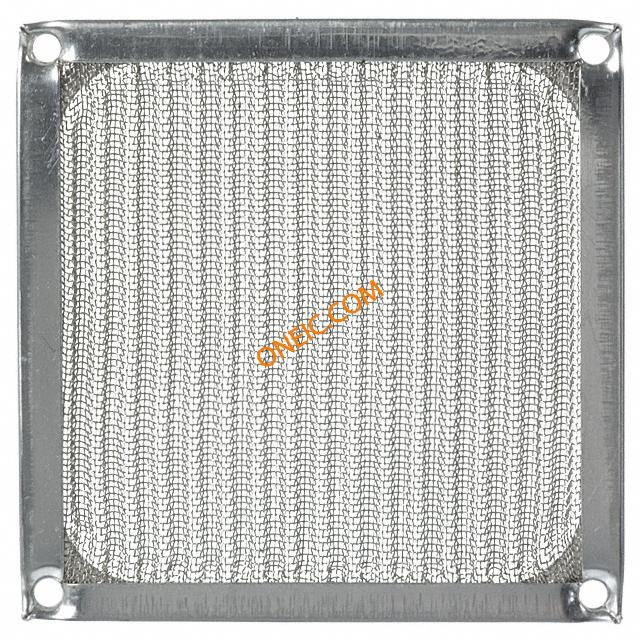

06362-M
| 制造商 | Qualtek Electronics Corp. |
| 描述 | Fan Cords & Accessories ALUM FLTR MIL 3 5/8 FAN FILTER/SCREEN 92MM Filter; 06 Series; 3-5/8 in. Fan; Aluminum; 3.62 in. H x 0.175 in. W Fan Accessories ALUM FLTR MIL 3 5/8 Thrml Mgmt Access Fan Filter Screen 92mm Aluminum FILTER, FAN 92MM SQ Filter;06Series;3-5/8in.Fan;Aluminum;3.62in.Hx0.175in.W Fan Accessories Aluminum & Stainless Steel Fan Filters 92 mm - 3 5/8 in. Use With Fan Size (in.): 3.625 Finish: Mill (No Finish) Sixz (inches) H (sq): 3.62 Size (inches) Thickness: 0.175 M/C: 3.245 |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 产品 | Fan Accessories | 交货时间 | 112 Days |
| 子类别 | Thermal Management Accessories | 产品类别 | Fan Cords & Accessories |
| 标准包装数量 | 200 | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 84145920 | ||
电气参数
| 滤波器类型 | :Mesh | ||
机械参数

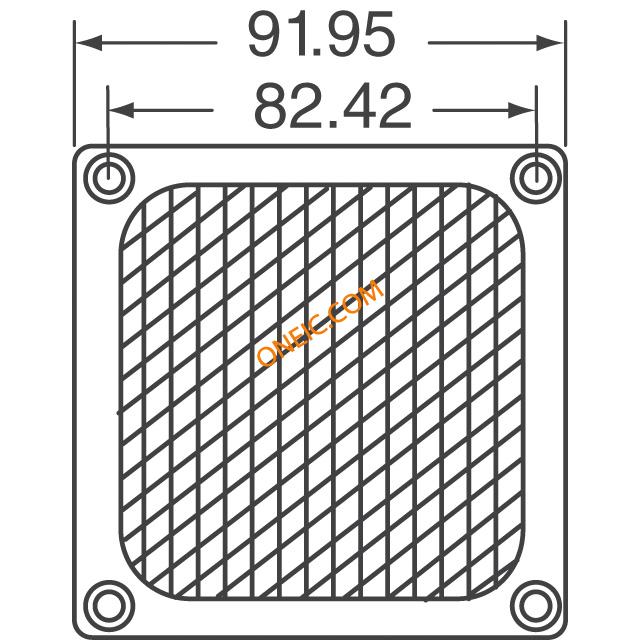

| 深度 | :3.5mm | 宽度 | :91.95mm |
| 长度 | 91.95 mm | 重量 | 0.01 |
| 风扇类型 | :92mm x 92mm | 材料（通用） | Polycarbonate (PC) |
| 包装方式 | Bulk | 高度（最大） | :91.95mm |
| 适配风扇尺寸 | 92 mm | 屏蔽材料 | :Aluminium |
| 风扇附件类型 | Filter/Screen | 安装面板厚度 | :82.42mm |
产品信息
| 类型 | Filter Screen | 产品特性 | Washable in solvent or degreaser |
| 附件类型 | :EMI/RFI Fan Filter | 适用产品/相关产品 | :Tube Axial Fans |
文档与媒体
相关型号

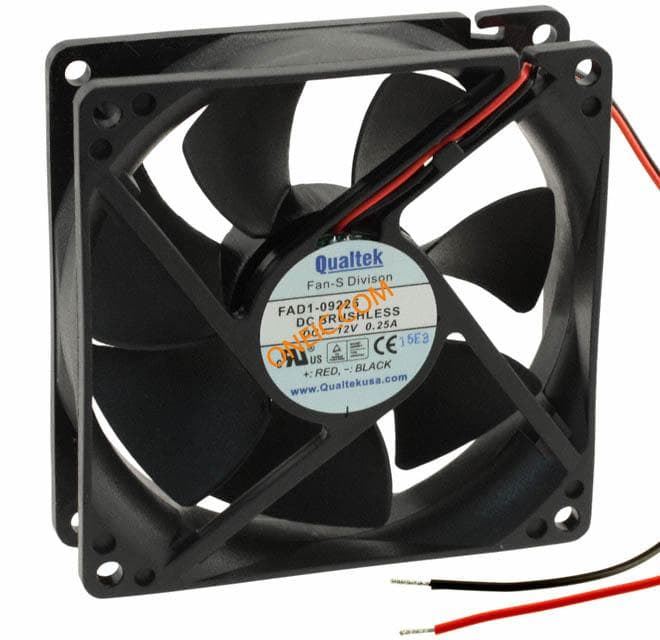

FAD1-09225CBLW11
Qualtek
FAN 92.5X25MM BALL 12VDC WIRE Fans DC FAN 92x25mm Ball 12VDC WIRE
¥32.8964
详情
暂无图片
AUB0912VH-CIT
Delta Electronics, Inc.
FAN DC AXIAL 12V 92X25.4 3600RPM
¥27.8800
详情
暂无图片
FFB0948SHE-T500
Delta Electronics, Inc.
48V DC FAN 92X92X38 MM
详情
暂无图片
PFB0912UHE-F00
Delta Electronics, Inc.
12V DC FAN 92X92X38 MM
详情
暂无图片
FAD1-09225DSMW11
Qualtek
FAN 92.5X25MM 24VDC SLEEVE WIRE Fans DC FAN 92x25mm 24VDC Sleeve WIRE
¥14.0284
详情
暂无图片
FAD1-09225CHAW11
Qualtek
FAN 92.5X25MM 12VDC HYDRO WIRE Fans DC FAN 92x25mm 12VDC Hydro WIRE
¥16.4900
详情
暂无图片
FAD1-09225CHAW12
Qualtek
FAN 92.5X25MM 12VDC HYDRO WIRE Fans DC FAN 92x25mm 12VDC Hydro WIRE
¥24.9084
详情
暂无图片
AFB0912H-R00
Delta Electronics, Inc.
12V DC FAN 92X92X25.4 MM
详情
AUB0912VH-CIT
Delta Electronics
FAN DC AXIAL 12V 92X25.4 3600RPM
¥28.0500
详情
FFB0948SHE-T500
Delta Electronics
48V DC FAN 92X92X38 MM
¥170.0000
详情
AFB0912H-R00
Delta Electronics
12V DC FAN 92X92X25.4 MM
¥49.5550
详情
PFB0912UHE-F00
Delta Electronics
12V DC FAN 92X92X38 MM
¥204.6800
详情

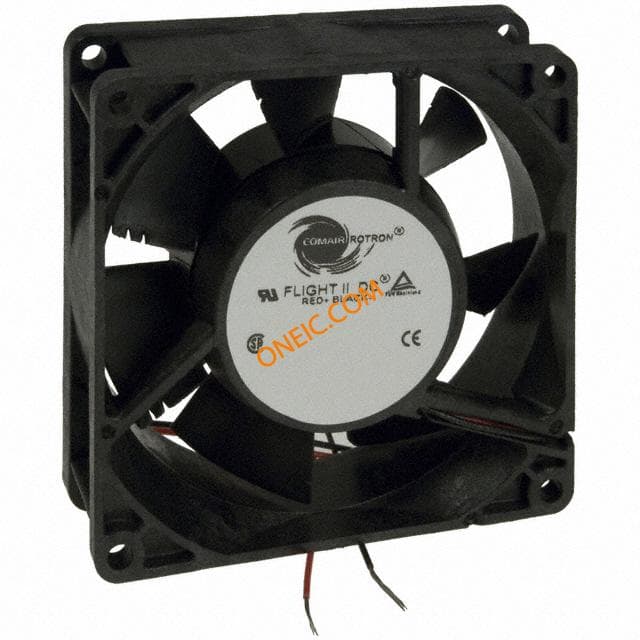

19031168A
