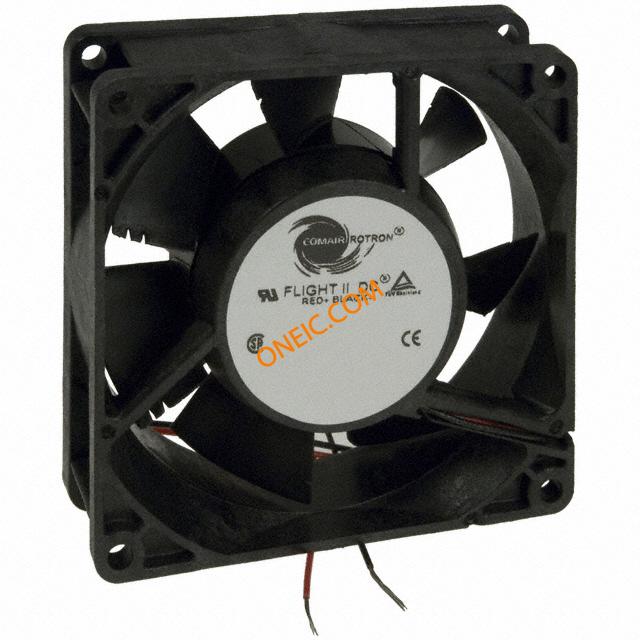

19031168A
| 制造商 | Comair Rotron |
| 描述 | FAN 12VDC FLIGHT II 90 FN12B3 |
| 分类 |
商业参数
| 标准包装数量 | 40 | ||
电气参数
| 噪声 | 38.1 dB(A) | 功率（瓦） | 2.40W |
| 电压范围 | 6 ~ 14VDC | 额定电压 | 12VDC |
| 最大额定电流 | 0.200A | ||
机械参数
| RPM | 2784 RPM | 重量 | 0.441 lb (200.03g) |
| 风量 | 45.0 CFM (1.27m³/min) | 风扇类型 | Tubeaxial |
| 端接方式 | 2 Wire Leads | 轴承类型 | Ball |
| 静压 | 0.182 in H2O (45.3 Pa) | 刀片材料 | Polybutylene Terephthalate (PBT) |
| 尺寸/外形 | Square - 92mm L x 92mm H x 25.4mm W | ||
文档与媒体
相关型号
06362-SS
Qualtek
Fan Cords & Accessories STEEL FILTER 92MM FAN FILTER/SCREEN STEEL 92MM Filter; 06 Series; 3-5/8 in. Fan; Stainless Steel; 3.62 in. H x 0.175 in. W Fan Accessories STEEL FILTER 92MM Thrml Mgmt Access Fan Filter Screen 92mm Stainless Steel Filter;06Series;3-5/8in.Fan;StainlessSteel;3.62in.Hx0.175in.W Fan Accessories Aluminum & Stainless Steel Fan Filters 92 mm - 3 5/8 in. Use With Fan Size (in.): 3.625 Finish: Stainless Steel Sixz (inches) H (sq): 3.62 Size (inches) Thickness: 0.175 M/C: 3.245
09362-M/45
Qualtek
Fan Cords & Accessories 45 PPI FOAM FILTER MEDIA PACK OF 5 FILTER FAN ELEM 92MM 45PPI PKG/5 Filter; Fan; Foam Filter Media; 3-5/8 in. Tube Axial Fans; Plastic Fan Accessories 45 PPI FOAM FILTER MEDIA PACK OF 5 Thrml Mgmt Access Foam Media 92mm Plastic FAN FILTER MEDIA Filter,Fan;FoamFilterMedia;3-5/8in.TubeAxialFans;Plastic Fan Accessories Plastic Fan Filter Assemblies 92 mm - 3 5/8 in. Description: Foam Media (45 Pores Per Inch) Size Height (in.): 3.54 Size Width (in.): 3.54 Size Thickness (in.): 0.13 Size M/C (in.): -- Each Package contains 5 pieces
06362-M
Qualtek
Fan Cords & Accessories ALUM FLTR MIL 3 5/8 FAN FILTER/SCREEN 92MM Filter; 06 Series; 3-5/8 in. Fan; Aluminum; 3.62 in. H x 0.175 in. W Fan Accessories ALUM FLTR MIL 3 5/8 Thrml Mgmt Access Fan Filter Screen 92mm Aluminum FILTER, FAN 92MM SQ Filter;06Series;3-5/8in.Fan;Aluminum;3.62in.Hx0.175in.W Fan Accessories Aluminum & Stainless Steel Fan Filters 92 mm - 3 5/8 in. Use With Fan Size (in.): 3.625 Finish: Mill (No Finish) Sixz (inches) H (sq): 3.62 Size (inches) Thickness: 0.175 M/C: 3.245
09362-G
Qualtek
Fan Cords & Accessories BLK PLSTC GUARD 3.62 FINGER GUARD 92MM PLASTIC Fan Accessories BLK PLSTC GUARD 3.62 Thrml Mgmt Access Guard 92mm Plastic FINGER GUARD Filter,Fan;3-5/8in.TubeAxialFans;Plastic Fan Accessories Plastic Fan Guards For Use With Fan Size (mm): 92 For Use With Fan Size (in.): 3.625
09362-M/30
Qualtek
Fan Cords & Accessories 30 PPI FOAM MEDIA MEDIA PACK OF 5 FILTER FAN ELEM 92MM 30PPI PKG/5 Filter; Fan; Foam Filter Media; 3-5/8 in. Tube Axial Fans; Plastic Fan Accessories 30 PPI FOAM MEDIA MEDIA PACK OF 5 Thrml Mgmt Access Foam Media 92mm Plastic FAN FILTER MEDIA Filter,Fan;FoamFilterMedia;3-5/8in.TubeAxialFans;Plastic Fan Accessories Plastic Fan Filter Assemblies 92 mm - 3 5/8 in. Description: Foam Media (30 Pores Per Inch) Size Height (in.): 3.54 Size Width (in.): 3.54 Size Thickness (in.): 0.13 Size M/C (in.): -- Each Package contains 5 pieces
09362-F/30
Qualtek
Fan Cords & Accessories 30 PPI FLTR ASSEMBLY FILTER ASSB FAN GUARD 92MM 30PPI Filter; Fan; Foam Filter Media; 3-5/8 in. Tube Axial Fans; Plastic Fan Accessories 30 PPI FLTR ASSEMBLY Thrml Mgmt Access Fan Filter Assembly 92mm Plastic FAN FILTER ASSEMBLY Filter,Fan;FoamFilterMedia;3-5/8in.TubeAxialFans;Plastic Fan Accessories Plastic Fan Filter Assemblies 92 mm - 3 5/8 in. Description: Guard, Retainer, Media (30 Pores Per Inch) Size Height (in.): 3.8 Size Width (in.): 3.8 Size Thickness (in.): 0.39 Size M/C (in.): 3.25
09362-F/45
Qualtek
FILTR ASSB FAN GUARD 92MM 45PPI Filter; Fan; Foam Filter Media; 3-5/8 in. Tube Axial Fans; Plastic Thrml Mgmt Access Fan Filter Assembly 92mm Plastic FAN FILTER ASSEMBLY Filter,Fan;FoamFilterMedia;3-5/8in.TubeAxialFans;Plastic Fan Accessories Plastic Fan Filter Assemblies 92 mm - 3 5/8 in. Description: Guard, Retainer, Media (45 Pores Per Inch) Size Height (in.): 3.8 Size Width (in.): 3.8 Size Thickness (in.): 0.39 Size M/C (in.): 3.25
8459
3M
Shield Adapter Kit
8462
3M
- SHIELD ADAPTER KIT

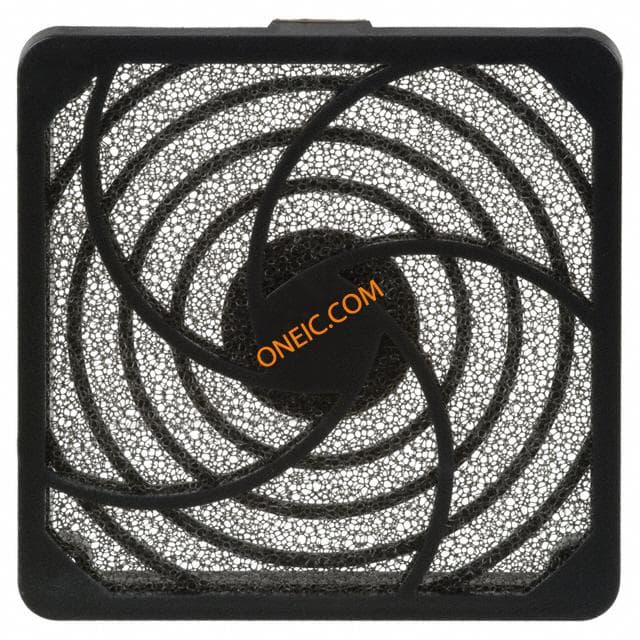

09362-F/30
Mechatronics
Fan Filter Assemblies Contains: Guard, Foam Media & Retainer Media: 30 Pores Per Inch Height (inches): 3.8 Width (inches): 3.8 Thickness (inches): 0.39

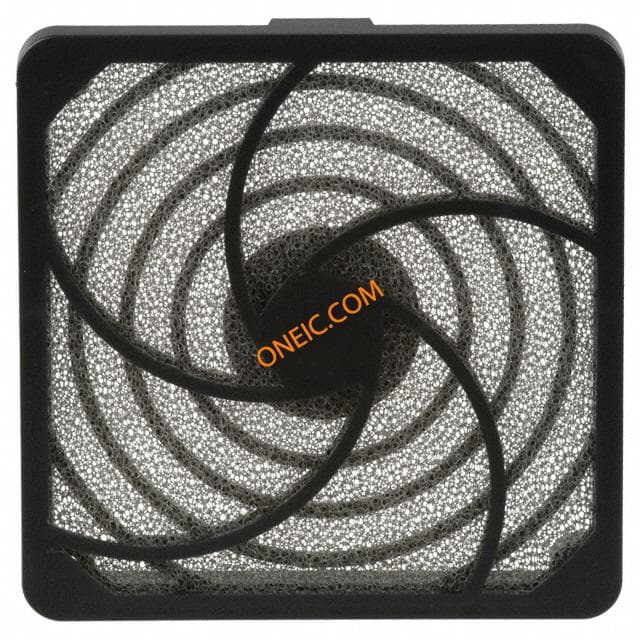

09362-F/45
Mechatronics
Fan Filter Assemblies Contains: Guard, Foam Media & Retainer Media: 45 Pores Per Inch Height (inches): 3.8 Width (inches): 3.8 Thickness (inches): 0.39
