点击放大查看

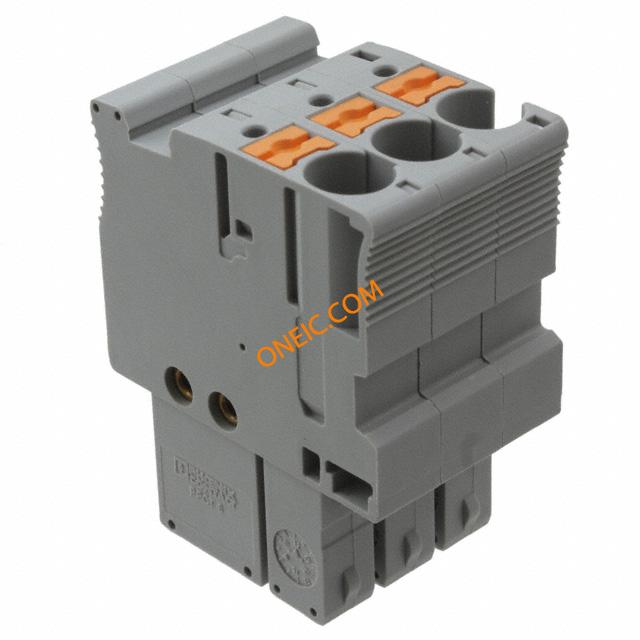

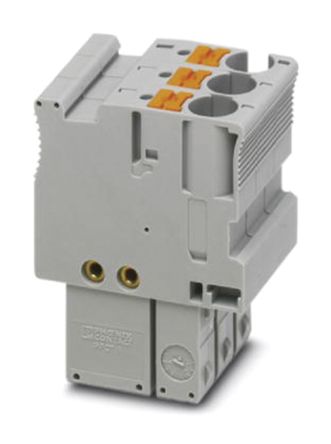

3212305
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | CONN TERM BLK PLUG 3POS GRAY TERM BLOCK PLUG 3POS STR DIN Rail Terminal Blocks PPCT 6/3 PPCT6/3 Phoenix Contact CLIPLINE 系列 3 路 接线端子插头, 推入式端接, 320 V |
| 分类 |
商业参数
| 商标名 | COMBI COUPLINGS | 标准包装规格 | 10 |
| 标准包装数量 | 10 | ||
合规参数
| RoHS | RoHS Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 电流 | 5A | 电压 | 600V |
| 额定电压 | 320 V | 最大额定电流 | 20 A |
机械参数
| 颜色 | Gray | 宽度 | 24.6 mm |
| 高度 | 48.5 mm | 长度 | 38.5 mm |
| 材料（通用） | PA | 包装方式 | Bulk |
| 导线线规 | 8-20 AWG | 端接方式 | Screwless - Push In |
| 安装类型 | Free Hanging (In-Line) | 排数 | 1 |
| 插头进线方向 | 180° | 壳体材料 | Polyamide (PA) |
| 端接排数 | 推入式 | 端接样式 | Push-In |
| 触点数 | 3 | 位数 | 3 |
| 接线端子类型 | Plug, Female Sockets | 线规或范围 - AWG | 20-8 |
| 线规或范围 - mm² | 8 | ||
产品信息
| 类型 | Plug | 系列 | PPC |
| 线路数量 | 3 | 层数 | 1 |
| 每层位数 | 3 | ||
环境参数
| 工作温度 | +130°C | ||
