点击放大查看

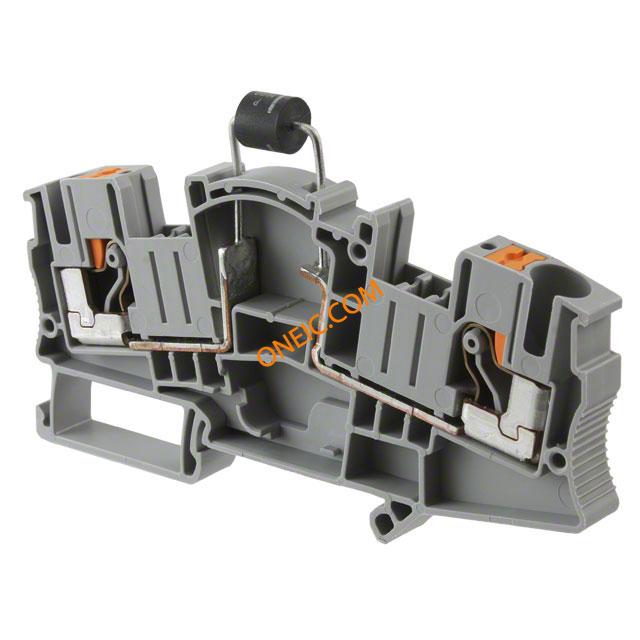

3212301

制造商	Phoenix Contact GmbH & Co. KG
描述	CONN TERM BLK PLUG RCPT 2POS GRY DIN Rail Terminal Blocks PTMED 6-CT/1P PTMED6-CT/1P Phoenix Contact PTMED Clipline 系列灰色 DIN 导轨端子 , 30A, 500 V
分类	连接器解决方案接线端子DIN导轨接线端子

对参数有疑问？问 AI 助手

商业参数

商标名	CLIPLINE PT	标准包装规格	50
标准包装数量	50

合规参数

RoHS

RoHS Compliant

材料阻燃等级

UL94 V-0

电气参数

电流 - UL	30A	UL电压	300V
电流 - IEC	30A	IEC电压	500V
额定电压	500 V	最大额定电流	30 A

机械参数

颜色	Gray	宽度	8.2 mm
高度	49.6 mm, 57.1 mm	长度	4.524" (114.90mm)
导线线规	20	高度（最大）	2.248" (57.10mm)
外壳颜色	Gray	安装类型	DIN Rail
排数	1	壳体材料	Polyamide (PA)
剥线长度（范围）	12mm	端子宽度	8.2mm
端接排数	推入式	端接样式	Plug Receptacles, Push In, Spring
触点数	2	位数	2
绝缘材料 - 材质	Polyamide (PA), Nylon	线规或范围 - AWG	8-20 AWG
线规或范围 - mm²	0.5-10mm²

产品信息

类型	Plug Connection	系列	PT
叠层数	单层	层数	1

环境参数

工作温度

+130°C

文档与媒体

PDF 文档

3212301
