1884872
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Heavy Duty Power Connectors VC-AMLV 6 Conn Shrouded Header HDR 6 POS 5mm Solder ST Thru-Hole CONTACT INSERT MODULE 6POS Contact insert VC-AMLV 6 Contact insert module, for panel mounting frames, with 180° PCB connection, 6-pos., 250 V / 10 A VC-AMLV6 |
| 分类 |
商业参数
| 商标名 | PLUSCON Device | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 额定电压 | 250V | 最大额定电流 | 8A |
| 最小输入电压 | 250V | ||
机械参数
| 间距 | 5 | 高度 | 28.6 |
| 重量 | 0.182719 oz | 包装方式 | Bulk |
| 端接方式 | Solder | 安装类型 | Through Hole |
| 连接器类型 | Insert | 接触镀层 | Tin |
| 排数 | 2 | 触头材料 | Brass |
| 壳体材料 | Polyamide | 端接样式 | Solder |
| 触点数 | 6 | 位数 | 6 |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 产品子类型 | Accessories | ||
环境参数
| 工作温度 | -40°C ~ 100°C | ||
文档与媒体
相关型号
1734634
Phoenix Contact
Terminal Block Tools & Accessories CODING SECTION CP-MSTB Connector Accessories Coding Section Is Inserted Into The Slot On The Plug Or Inverted Header Red TERM BLK PLUG CODE SECTION RED CP-MSTB KEYINGPROFILE,REDINSULATINGMATERIAL
1852985
Phoenix Contact
Heavy Duty Power Connectors VC-AR2/3M Panel Mounting Frame, Without Pe, For Contact Insert Modules CONN FRAME PANEL MT 3POS INSERT Panel mounting frames VC-AR2/3M VC-AR2/3M
1853007
Phoenix Contact
ヘビーデューティパワーコネクタ VC-AR4/5M Panel Mounting Frame, Without Pe, For Contact Insert Modules CONN FRAME PANEL MT 5POS INSERT Panel mounting frames VC-AR4/5M Heavy Duty Power Connectors VC-AR4/5M VC-AR4/5M Phoenix Contact VC4 系列 安装框架

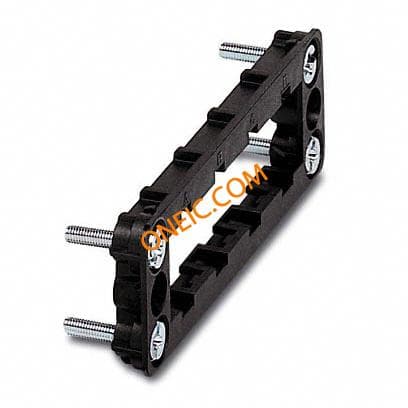

1852972
Phoenix Contact
Heavy Duty Power Connectors VC-AR1/2M Panel Mounting Frame, Without PE, For Contact Insert Modules CONN FRAME PANEL MT 2POS INSERT Panel mounting frames VC-AR1/2M VC-AR1/2M Mounting Frame

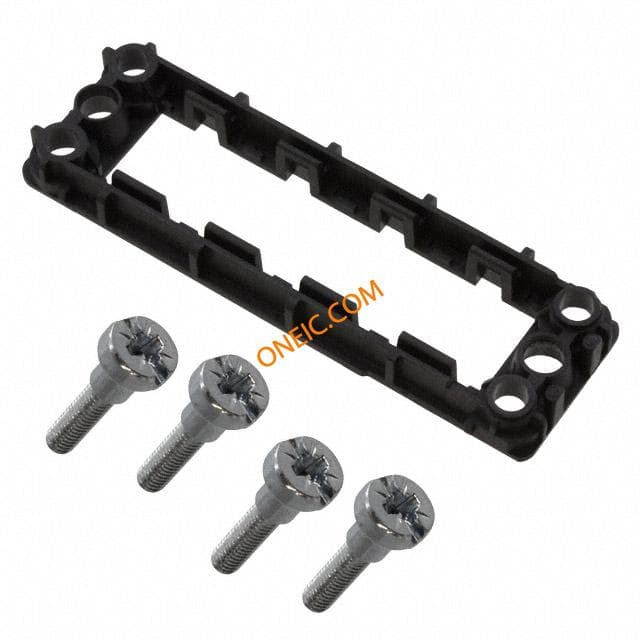

1852998
