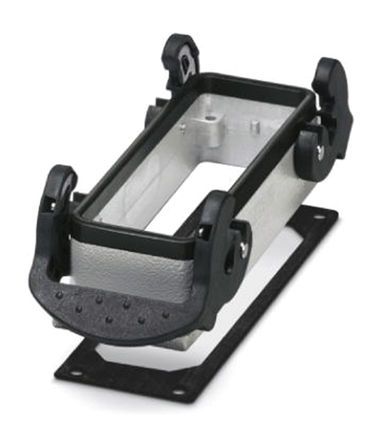

点击放大查看
1774021
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | ヘビーデューティパワーコネクタ HC-HV 10/16-AML Heavycon Panel Mounting Base Hv10/16, With Single Locking Latch, Height 27 Mm PANEL MOUNTING BASE HV10/16 Heavy Duty Power Connectors HC-HV 10/16-AML HEAVYCON panel mounting base HV10/16, with single locking latch, height 27 mm HC-HV10/16-AML Phoenix Contact HC-HV 系列 连接器外壳 , 适用于HC-HV10/16 |
| 分类 |
商业参数
| 交货时间 | 24 Days | 商标名 | HEAVYCON |
| 子类别 | Misc Products | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
机械参数
| 尺寸 | HV10/16 | 重量 | 4.854050 oz |
| 包装方式 | Bulk | 外壳颜色 | Gray |
| 连接器类型 | Base - Panel Mount | 外壳涂层 | Powder Coated |
| 壳体材料 | Aluminum, Die Cast | 尺寸/外形 | 5.512" L x 1.693" W x 1.062" H (140.00mm x 43.00mm x 27.00mm) |
产品信息
| 样式 | Bottom Entry | 系列 | HC-HV |
| 产品子类型 | Accessories | 锁定位置 | Side Clip on Base Bottom |
| 附件类型 | 外壳 | 行业别名 | HC-HV 10/16-AML |
| 适用产品/相关产品 | HC-HV10/16 | ||
环境参数
| 防护等级 | IP65 - Dust Tight, Water Resistant | 工作温度 | -40°C ~ 125°C |
