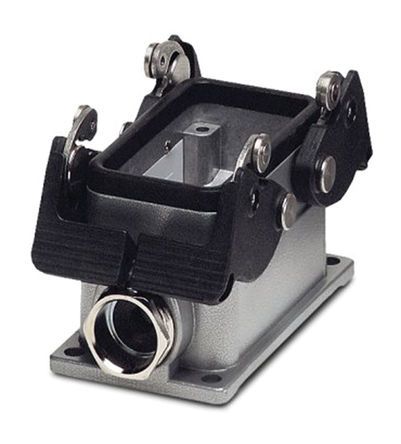

点击放大查看
1773637
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | ヘビーデューティパワーコネクタ HC-HV 3-SMLD-52/ M2PG16 Box Mounting Base, With Single Locking Latch, Height 52mm, With Screw Connection, 2X PG29, With Protective Covers HEAVYCON BOX MOUNTING BASE Heavy Duty Power Connectors HC-HV 3-SMLD-52/ M2PG16 HC-HV3-SMLD-52/M2PG16 Phoenix Contact HC-HV 系列 连接器外壳 , PG16螺纹, 适用于HV-HV3 |
| 分类 |
商业参数
| 交货时间 | 45 Days | 商标名 | HEAVYCON |
| 子类别 | Misc Products | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
机械参数
| 尺寸 | HV3 | 重量 | 10.169836 oz |
| 包装方式 | Bulk | 螺纹尺寸 | PG16 |
| 外壳颜色 | Gray | 连接器类型 | Base - Box Mount with Cover |
| 外壳涂层 | Powder Coated | 壳体材料 | Aluminum, Die Cast |
| 尺寸/外形 | 3.661" L x 2.047" W x 2.047" H (93.00mm x 52.00mm x 52.00mm) | 端接样式 | Screw |
产品信息
| 类型 | Cover | 样式 | Side Entry |
| 系列 | HC-SMLD | 产品特性 | Feed Through |
| 产品子类型 | Accessories | 锁定位置 | Side Clip on Base Bottom |
| 附件类型 | 外壳 | 行业别名 | HC-HV 3-SMLD-52/M2PG16 |
| 适用产品/相关产品 | HV-HV3 | ||
环境参数
| 防护等级 | IP65 - Dust Tight, Water Resistant | 工作温度 | -40°C ~ 125°C |
