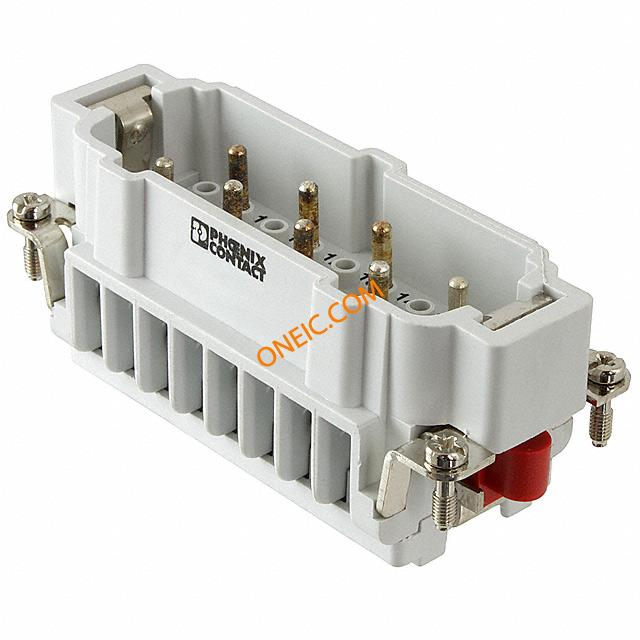

1773352
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | ヘビーデューティパワーコネクタ HC-HV 6-ESTS Conn HEAVYCON Insert M 6 POS Screw ST Panel Mount MALE INSERT 8POS Contact insert HC-HV 6-ESTS Heavy Duty Power Connectors HC-HV 6-ESTS HC-HV6-ESTS Phoenix Contact 8P+E 公插 RJ45-Rangierfeld , 额定电流 16A/ 690 V |
| 分类 |
商业参数
| 交货时间 | 12 Days | 商标名 | HEAVYCON |
| 子类别 | Connector Rectangular | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 额定电压 | 690 V | 最大额定电流 | 16A |
| 最小输入电压 | 690V | ||
机械参数
| 尺寸 | HV6 | 深度 | 35.5 |
| 高度 | 34 | 重量 | 3.032150 oz |
| 包装方式 | Bulk | 端接方式 | Screw |
| 安装类型 | Straight | 连接器类型 | Insert |
| 接触镀层 | Silver | 排数 | 2 |
| 触头材料 | Copper Alloy | 壳体材料 | Polyamide |
| 总长度 | 84.5 | 端接样式 | Screw |
| 第一触头极性 | M | 触点数 | 6 |
| 位数 | 6+2+Ground | ||
产品信息
| 类型 | HEAVYCON Insert | 连接器性别 | Male |
| 极性 | 8P+E | 产品子类型 | Inserts |
| 附件类型 | 触点插件 | 行业别名 | HC-HV 6-ESTS |
环境参数
| 工作温度 | -40°C ~ 125°C | ||
