点击放大查看
1772845
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Terminal Block Tools & Accessories HC-KA-B 6-ST/PEL Conn Terminal Block F 6 POS ST Panel Mount 16A TERM ADAPTER Contact insert HC-KA-B 6-ST/PEL INSERT MALE 6POS TERMINAL BLOCK HC-KA-B6-ST/PEL |
| 分类 |
商业参数
| 产品 | Tools & Accessories | 其他名称 | HC-KA-B 6-ST/PEL |
| 产品类别 | Terminal Block Tools & Accessories | 标准包装数量 | 1 |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 额定电压 | 600V | 最大额定电流 | 10A |
| 最小输入电压 | 400V | ||
机械参数
| 尺寸 | B6 | 深度 | 79 |
| 材料（通用） | Polyamide / Polycarbonate | 包装方式 | Bulk |
| 导线线规 | 12-22 | 安装类型 | Panel Mount |
| 连接器类型 | Insert | 接触镀层 | Silver |
| 排数 | 2 | 触头材料 | Copper Alloy |
| 壳体材料 | Polyamide | 总长度 | 51 |
| 端接样式 | Terminal Block, Straight - Push In | 触点数 | 6 |
| 位数 | 6 | ||
产品信息
| 类型 | Terminal Adapter, male insert | 连接器性别 | F |
环境参数
| 机械寿命 | Obsolete | 工作温度 | -40°C ~ 125°C |
相关型号
1775240
Phoenix Contact
Terminal Block Tools & Accessories HC-KA-FE Foot Element, For Mounting On Mounting Rail NS 32, Mounting Rail NS 35/7.5 Or Mounting Rail FOOT ELEMENT DIN RAIL Foot element for mounting terminal adapters on DIN rails HC-KA-FE FOOTELEMENT
1772803
Phoenix Contact
Terminal Block Tools & Accessories HC-KA-B 6-BU/PEL Conn HEAVYCON Adapter Insert F/F 6/6 POS Panel Mount TERM ADAPTER FEMALE INSERT 6POS Contact insert HC-KA-B 6-BU/PEL HC-KA-B6-BU/PEL
1771147
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B 6-AMLD Heavycon Panel Mounting Base B6, With Single Locking Latch, Height HEAVYCON PANEL MOUNTING BASE Heavy Duty Power Connectors HC-B 6-AMLD HEAVYCONpanelmountingbaseB6,withsinglelockinglatch,27mmwithlatch

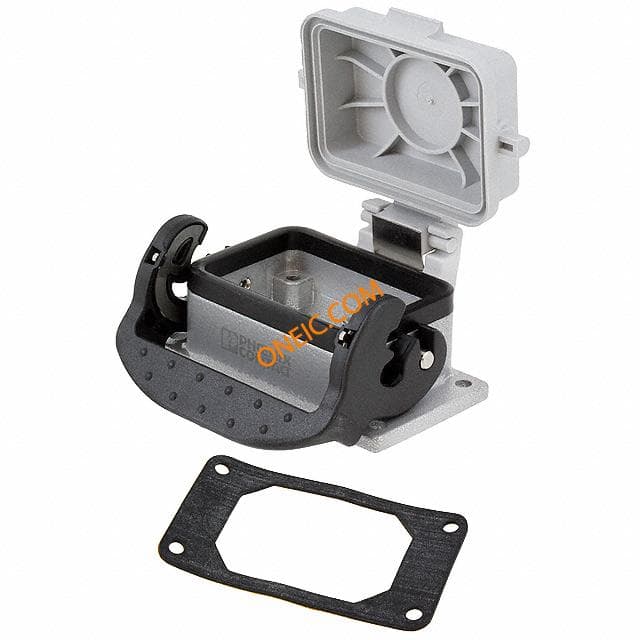

1645464
