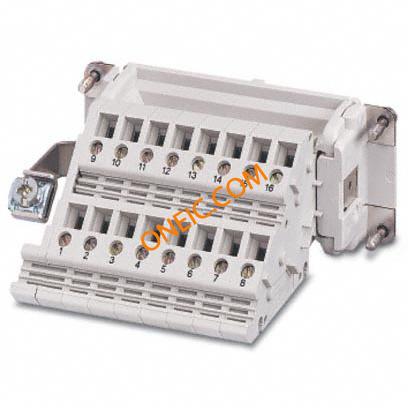

点击放大查看
1772803
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Terminal Block Tools & Accessories HC-KA-B 6-BU/PEL Conn HEAVYCON Adapter Insert F/F 6/6 POS Panel Mount TERM ADAPTER FEMALE INSERT 6POS Contact insert HC-KA-B 6-BU/PEL HC-KA-B6-BU/PEL |
| 分类 |
商业参数
| 交货时间 | 40 Days | 子类别 | Connector Rectangular |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 额定电压 | 600V | 最大额定电流 | 10A |
| 最小输入电压 | 400V | ||
机械参数
| 尺寸 | B6 | 深度 | 79 |
| 包装方式 | Bulk | 安装类型 | Panel Mount |
| 连接器类型 | Insert | 接触镀层 | Silver |
| 排数 | 2 | 触头材料 | Copper Alloy |
| 壳体材料 | Polyamide/Polycarbonate | 总长度 | 51 |
| 端接样式 | Terminal Block, Straight - Screw | 第一触头极性 | F/F |
| 触点数 | 6/6 | 位数 | 6 |
产品信息
| 类型 | HEAVYCON Adapter Insert | 连接器性别 | Female |
| 行业别名 | HC-KA-B 6-BU/PEL | ||
环境参数
| 工作温度 | -40°C ~ 125°C | ||
