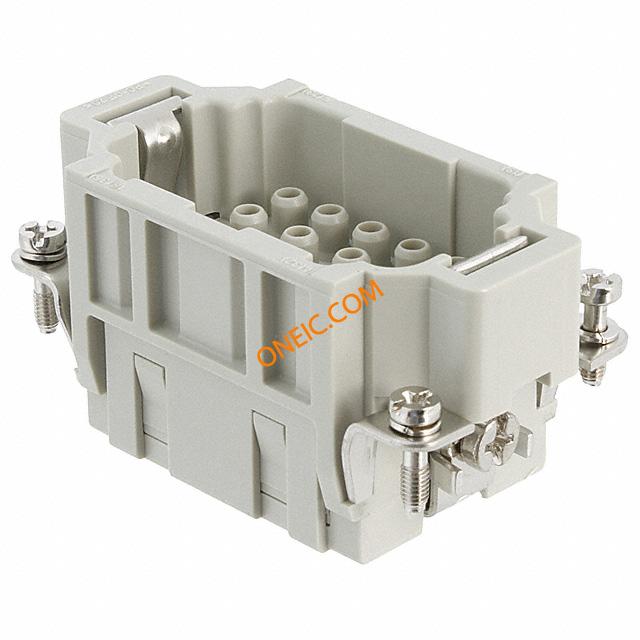

点击放大查看
1687464
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Heavy Duty Power Connectors Male BB18 18P Crimp Conn Housing M 18 POS Crimp ST Panel Mount CONN MALE INSERT 18POS HEAVYCON HEAVYCON male insert, BB18 series, 18-pos., crimp connection MALEINSERT,18-POS.,CRIMPCONNECTION HEAVYCONmaleinsert,BB18series,18position |
| 分类 |
商业参数
| 商标名 | HEAVYCON | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 额定电压 | 500V | 最大额定电流 | 16A |
| 最小输入电压 | 500V | ||
机械参数
| 尺寸 | B10 | 深度 | 34 |
| 高度 | 33.3 | 重量 | 1.834246 oz |
| 包装方式 | Bulk | 触头类型 | CK 2.5-ED |
| 安装类型 | Straight | 连接器类型 | Insert without Contacts |
| 接触镀层 | Silver | 排数 | 3 |
| 插入力 | Male | 壳体材料 | Polycarbonate |
| 总长度 | 64 | 端接样式 | Crimp |
| 触点数 | 18 | 位数 | 18 |
| 线规或范围 - AWG | 20-12 | ||
产品信息
| 类型 | Housing | 连接器性别 | M |
| 产品子类型 | Inserts | ||
环境参数
| 工作温度 | -40°C ~ 125°C | ||
