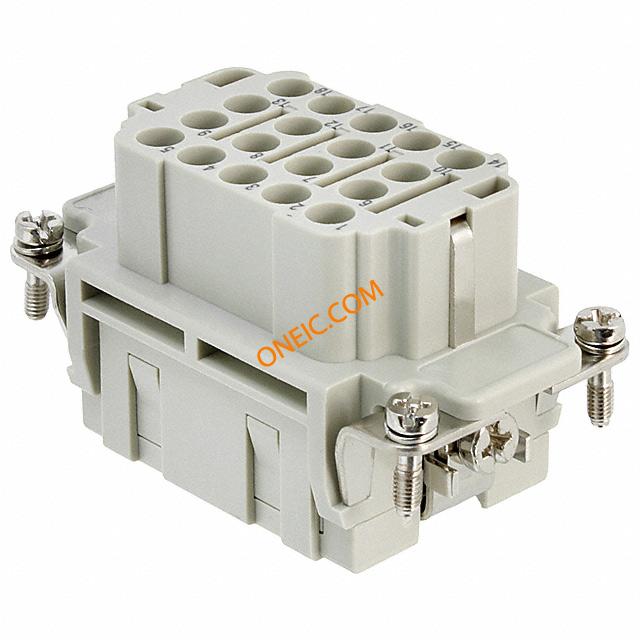

点击放大查看
1687451
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | ヘビーデューティパワーコネクタ Female BB18 18P Crimp Conn Terminal Block F 18 POS Crimp ST Panel Mount 16A CONN FMALE INSERT 18POS HEAVYCON HEAVYCON female insert, BB18 series, 18-pos., crimp connection Heavy Duty Power Connectors Female BB18 18P Crimp FEMALEINSERT,18-POS.,CRIMPCONNECTION |
| 分类 |
商业参数
| 商标名 | HEAVYCON | 标准包装数量 | 1 |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 额定电压 | 500V | 最大额定电流 | 16A |
| 最小输入电压 | 500V | ||
机械参数
| 尺寸 | B10 | 深度 | 36.2 |
| 高度 | 34 | 重量 | 2.000034 oz |
| 包装方式 | Bulk | 导线线规 | 12-20 |
| 端接方式 | Crimp | 触头类型 | CK 2.5-ED |
| 安装类型 | Panel Mount | 连接器类型 | Insert without Contacts |
| 接触镀层 | Silver | 排数 | 4 |
| 插入力 | Female | 触头材料 | Copper Alloy |
| 壳体材料 | Polyamide | 总长度 | 64 |
| 端接样式 | Crimp | 触点数 | 18 |
| 位数 | 18 | 线规或范围 - AWG | 20-12 |
产品信息
| 类型 | Terminal Block | 连接器性别 | F |
| 产品子类型 | Inserts | ||
环境参数
| 工作温度 | -40°C ~ 125°C | ||
