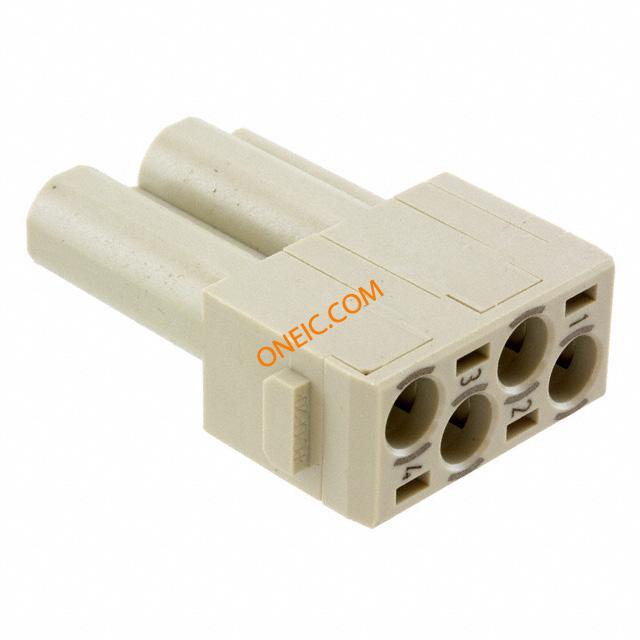

1585618

点击放大查看

1585618

制造商
Phoenix Contact GmbH & Co. KG
描述ヘビーデューティパワーコネクタ Insert Male 4P Shock Res. 40A Crimp Conn HEAVYCON Contact Insert Module PIN 4 POS Crimp ST HEAVYCON INSERT MODULE ML 4POS Heavy Duty Power Connectors Insert Male 4P Shock Res. 40A Crimp HC-M-04-MOD-STC Phoenix Contact 触点模块
分类
连接器解决方案重载连接器重载连接器（扩展）
对参数有疑问？问 AI 助手

商业参数

商标名HEAVYCON产品类别Heavy Duty Power Connectors
标准包装数量1工厂包装数量2

合规参数

RoHSLead free / RoHS Compliant欧盟RoHSCompliant
材料阻燃等级UL94 V-0

电气参数

额定电压600V最大额定电流40 A
最小输入电压830V

机械参数

深度44.6高度14.6
重量1.763698 oz包装方式Bulk
端接方式Crimp触头类型CK 4.0-ED
安装类型Straight连接器类型Module without Contacts
接触镀层Silver插入力Male
触头材料Copper Alloy壳体材料Polycarbonate (PC)
总长度34.2端接样式Crimp
第一触头极性PIN触点数4
位数4线规或范围 - AWG16-10

产品信息

类型HEAVYCON Contact Insert Module连接器性别Male
CAD图纸3D CAD 模型产品子类型Inserts
附件类型触点插件

环境参数

工作温度-40°C ~ 125°C

文档与媒体

PDF 文档
1585618
