点击放大查看

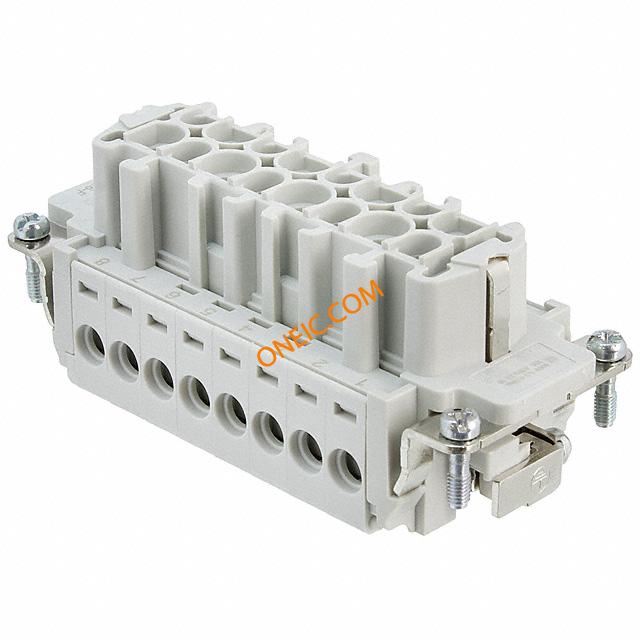

1584884
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | ヘビーデューティパワーコネクタ Female B16 16P 17-32 Printed Screw Conn Rectangular F 16 POS Screw ST Panel Mount FEMALE INSERT B16 SERIES 16POS Heavy Duty Power Connectors Female B16 16P 17-32 Printed Screw HC-B16-I-UT-F-32 |
| 分类 |
商业参数
| 商标名 | HEAVYCON | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 额定电压 | 600V | 最大额定电流 | 13A |
| 最小输入电压 | 500V | ||
机械参数
| 尺寸 | B16 | 深度 | 34.6 |
| 高度 | 34 | 包装方式 | Bulk |
| 端接方式 | Screw | 安装类型 | Straight |
| 连接器类型 | Insert | 接触镀层 | Silver |
| 安装样式 | Straight | 插入力 | Female |
| 触头材料 | Copper Alloy | 壳体材料 | Polyamide |
| 总长度 | 84 | 端接样式 | Screw |
| 第一触头极性 | F | 触点数 | 16 |
| 位数 | 16+Ground | ||
产品信息
| 类型 | Rectangular | 连接器性别 | Female |
| 产品子类型 | Inserts | ||
环境参数
| 工作温度 | -40°C ~ 125°C | ||
