点击放大查看

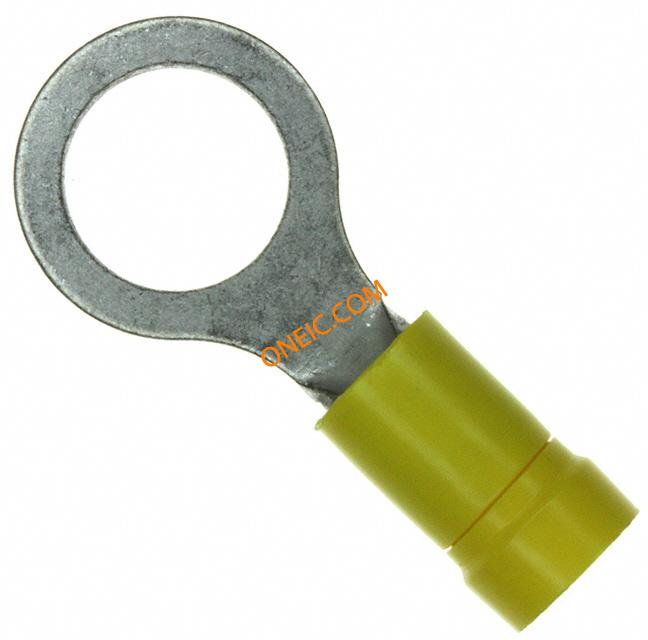

PV10-38R-L
| 制造商 | Panduit Corp. |
| 描述 | Ring Tongue Terminal 10-12AWG 33.3mm 14.7mm Tin Terminals Ring term 12 - 10 vinyl insulated TERM RING VYL 12-10AWG 3/8 TERMINAL;RING VINYL INSULATED; 12-10AWG;3/8 IN STUD TERMINAL,RINGVINYLINSULATED;12-10AWG;3/8INSTUD Ring Terminal, Vinyl Insulated, 12 - 10 AWG, 3/8" Stud Size, Funnel Entry, Pack of 50 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 产品类别 | Terminals |
| 标准包装数量 | Bulk | 工厂包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
机械参数
| 颜色 | Yellow | 深度 | 14.7 |
| 长度 | 33.3 mm | 重量 | 4.320000 oz |
| 镀层 | Tin | 材料（通用） | Copper |
| 包装方式 | Bulk | 厚度 | 0.040" (1.02mm) |
| 绝缘类型 | Insulated | 导线线规 | 10-12 AWG |
| 端接方式 | Crimp | 基体材料 | Copper |
| 安装类型 | Wire | 螺柱/焊片尺寸 | 9.52 mm |
| 端子类型 | Circular | 接触镀层 | Tin |
| 触头材料 | Copper | 总长度 | 1.310" (33.27mm) |
| 端接样式 | Crimp | 绝缘直径 | 0.225" (5.72mm) |
| 绝缘材料 - 类型 | Vinyl | 外缘宽度 | 0.580" (14.73mm) |
| 绝缘材料 - 材质 | Vinyl | ||
产品信息
| 类型 | Ring Tongue Terminal | 连接器性别 | Female |
| 产品特性 | Brazed Seam | ||
