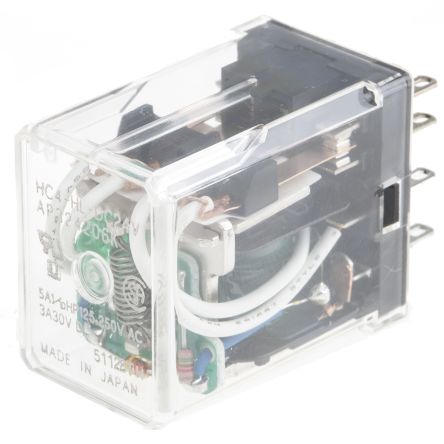

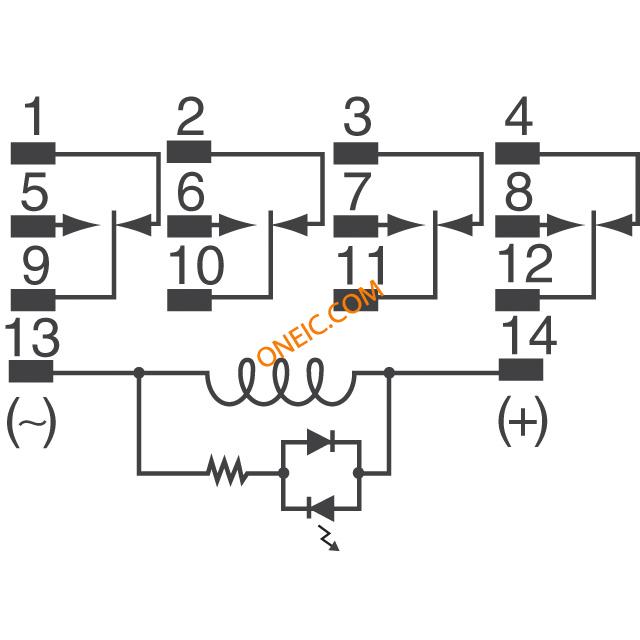

HC4-HL-DC24V
| 制造商 | Panasonic Corporation |
| 描述 | General Purpose Relays 4 Form C 24VDC Relay Plug-In w/ LED Electromechanical Relay 4PDT 5A 24VDC 650Ohm Plug-In RELAY GEN PURPOSE 4PDT 5A 24V Relay;E-Mech;Automotive;4PDT-NO/NC;Cur-Rtg 5A;Ctrl-V 24DC;Vol-Rtg 250AC;PCB Mnt Relay;E-Mech;Automotive;4PDT-NO/NC;Cur-Rtg5A;Ctrl-V24DC;Vol-Rtg250AC;PCBMnt Panasonic 4 刀双掷 PCB（印刷电路板）安装 非闭锁继电器, 5 A, 24V dc |
| 分类 |
商业参数
| 产品类别 | General Purpose Relays | 标准包装数量 | 20 |
| 工厂包装数量 | 20 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 标准 | UL,CSA,VDE | ||
电气参数
| 线圈类型 | Single Side Stable | 线圈功率 | 900 mW |
| 线圈电流 | 37mA | 释放时间 | 20ms |
| 额定功率 | 1.25kVA | 可见输出 | Yes |
| 额定电压 | 250VAC | 线圈电阻 | 650 Ohms |
| 推频（MHz/V） | No | 供电电压 | 24 V |
| 开关电压 | 250VAC - Max | 峰值脉冲功率 | 1.25 kVA |
| Vgs(th)（最大）@ Id | 2.4 VDC | 钳位电压 | 19.2VDC |
| 二极管配置 | No | 最大额定电流 | 5A |
| 最小输入电压 | 2.4VDC | 交流开关电压 | 250V |
| 平均正向功率 | 900 mW | 集电极-发射极饱和电压（最大）@ Vge, Ic | 19.2 VDC |
| 触点额定电流 | 5A | 峰值脉冲电流（8/20µs） | 5 A |
| 驱动电压（最大Rds On，最小Rds On） | 24VDC | ||

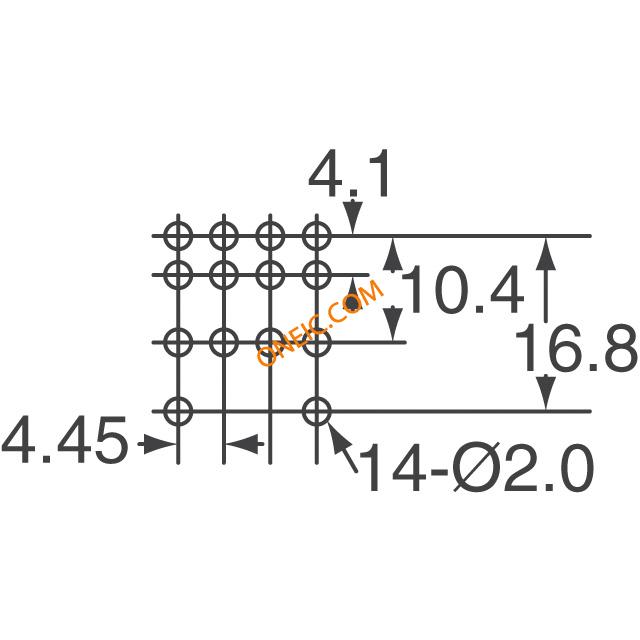

机械参数
| 密封 | Unsealed | 深度 | 20.8mm |
| 高度 | 35.2mm | 长度 | 27.2mm |
| 包装方式 | Bulk | 端接方式 | Plug-In |
| 触点形式 | 4 Form C (4PDT-BM) | 安装类型 | Plug-In |
| 安装样式 | Plug In | 冷却的封装 | Dust Cover |
| 触头材料 | Silver Nickel | 总长度 | 27.2 |
| 尺寸/外形 | 27.2 x 20.8 x 35.2mm | 端接样式 | Quick Connect |
| 触点数 | 14 | 接触件端接 | Quick Connect |
| 绝缘材料 - 类型 | 2kV rms | 典型触点布局 | 4PDT |
产品信息
| 类型 | General Purpose Relay | 产品特性 | LED Indicator |
| 功能 | Automotive | 继电器类型 | Non-Latching |
| 应用领域 | 汽车 | 制造商全称 | HCSeries |
环境参数
| 动作时间 | 20ms | 工作寿命 | 200000 次操作 |
| 工作温度 | -50°C ~ 60°C | 最高温度限值 | +60°C |
