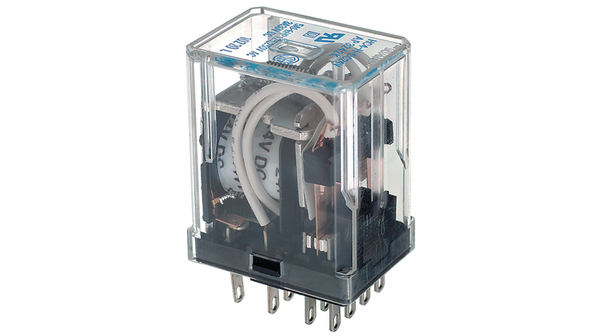

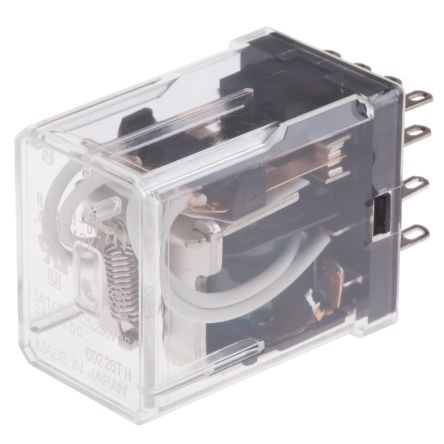

HC4-H-DC24V
| 制造商 | Panasonic Corporation |
| 描述 | General Purpose Relays 5A 24VDC 4PDT PLUG-IN Electromechanical Relay 4PDT 5A 24VDC 650Ohm Plug-In RELAY GEN PURPOSE 4PDT 5A 24V Relay;E-Mech;Gen Purp;4PDT-NO/NC;Cur-Rtg 5A;Ctrl-V 24DC;Vol-Rtg 250AC;PCB Mnt POWER RELAY, 4PDT, 24VDC, 5A, PLUG IN Relay;E-Mech;GenPurp;4PDT-NO/NC;Cur-Rtg5A;Ctrl-V24DC;Vol-Rtg250AC;PCBMnt Industrial relay 24 VDC 650 Ohm 900 mW, HC4-H-DC24V, Panasonic Panasonic 4 刀双掷 面板安装 非闭锁继电器, 24V dc |
| 分类 |
商业参数
| 产品类别 | General Purpose Relays | 标准包装数量 | 20 |
| 工厂包装数量 | 20 | ||
合规参数
| RoHS | RoHS Compliant By Exemption | 欧盟RoHS | Compliant |
| 标准 | UL,CSA,VDE | 海关税号 | 85364110 |
电气参数
| 线圈类型 | Standard | 线圈功率 | 900 mW |
| 量程（°/s） | :PANASONIC EW - HC Series | 线圈电流 | 37 mA |
| 释放时间 | 20ms | 额定功率 | 1.25kVA |
| 可见输出 | No | 额定电压 | 250VAC |
| 线圈电阻 | 650 Ohms | 推频（MHz/V） | No |
| 输出电流 | :5A | 供电电压 | 24 V |
| 开关电压 | 250VAC - Max | Vgs(th)（最大）@ Id | 2.4 VDC |
| 钳位电压 | 19.2VDC | 二极管配置 | No |
| 最大额定电流 | 5A | 触点电压（最大） | :250V |
| 最小输入电压 | 2.4VDC | 平均正向功率 | 900 mW |
| 集电极-发射极饱和电压（最大）@ Vge, Ic | 19.2 VDC | 触点额定电流 | 5A |
| 数字供电电压 | :30V | 驱动电压（最大Rds On，最小Rds On） | 24VDC |

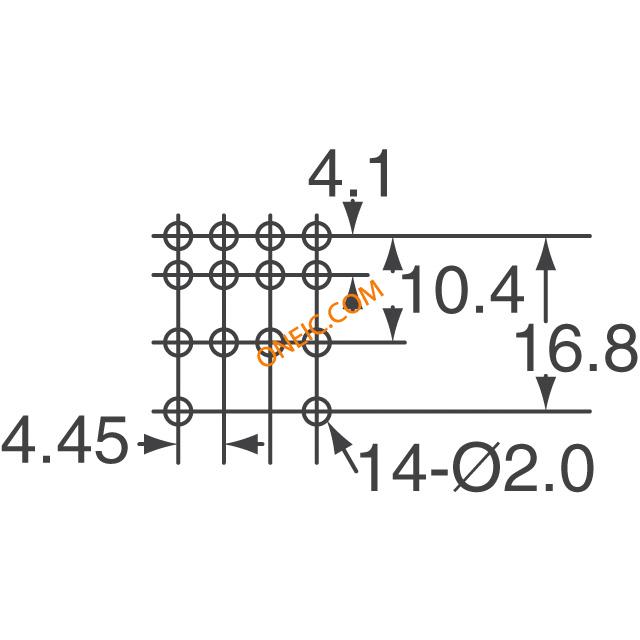

机械参数
| 密封 | Unsealed | 深度 | 20.8 |
| 高度 | 35.2 | 重量 | 0.027 |
| 包装方式 | Bulk | 端接方式 | Plug-In |

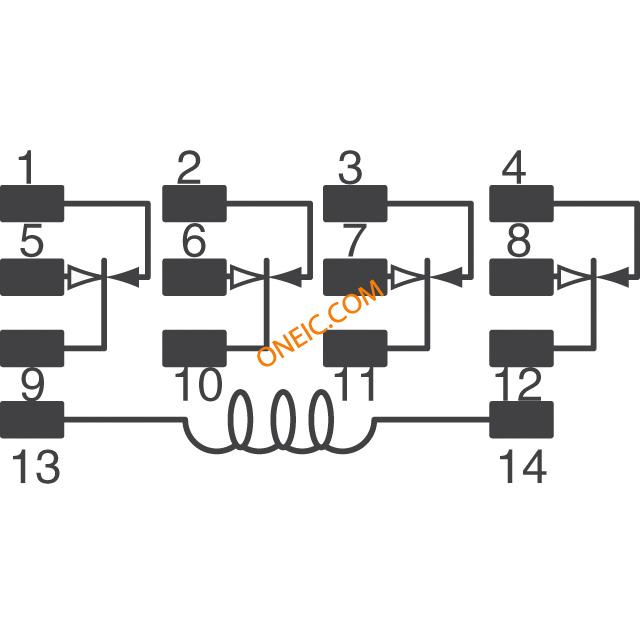

| 触点形式 | 4 Form C (4PDT-BM) | 安装类型 | Plug-In |
| 安装样式 | Plug In | 冷却的封装 | Dust Cover |
| 触头材料 | Silver Nickel | 总长度 | 27.2 |
| 端接样式 | Quick Connect | 触点数 | 14 |
| 接触件端接 | Quick Connect | 典型触点布局 | 4PDT |
产品信息
| 类型 | Miniature Power Relay | 系列 | :HC |
| 功能 | GeneralPurpose | 继电器类型 | Non-Latching |
| 制造商全称 | HCSeries | ||
环境参数
| 动作时间 | 20ms | 工作温度 | -50°C ~ 70°C |
文档与媒体
相关型号
HC4-PS-K
Panasonic Electric Works
Relay Sockets & Hardware W/CLIP FOR HC4 RELAY Conn Relay Socket SKT 14 POS Solder ST Thru-Hole ACCY RELAY SOCKET W/CLIP HC4 PCB RELAY SOCKET* (4 POLE, PC BOARD MOUNT) Relay socket for HC4, HC4-PS-K, Panasonic
HC4-SFD-K
Panasonic Electric Works
Relay Sockets & Hardware W/CLIP FOR HC4 RELAY Conn Relay Socket SKT 14 POS Screw ST Panel Mount Case SOCKET SCRW W/CLIP DIN HC4 RELAY Socket;Screw Terminal;Din Rail;With Hold Down Clip; RELAY SOCKET Socket,Relay;ScrewTerminal,DinRail,WithHoldDownClip, RELAY SOCKET* (4 POLE - DIN RAIL MOUNT)
782XDX2C-24D
Magnecraft / Schneider Electric
General Purpose Relays Ice Cube Relay 4PDT, 10A, Plain Cvr Relay;E-Mech;Power;4PDT;Cur-Rtg 8; 10A;Ctrl-V 110DC;Vol-Rtg 120; 277/28AC/DC Electromechanical Relay 4PDT 10A 24VDC 650Ohm Socket
R12-17D3-24
NTE
NTE Replacement Parts RELAY 24VDC 4PDT 5A Relay;E-Mech;Gen Purp;4PDT;Cur-Rtg 5A;Ctrl-V 24DC;Vol-Rtg 120/240 AC; 28 DC Electromechanical Relay 4PDT 5A 24VDC 650Ohm Plug-In POWER RELAY, 4PDT, 24VDC, 5A, PLUG IN Relay;E-Mech;GenPurp;4PDT;Cur-Rtg5A;Ctrl-V24DC;Vol-Rtg120/240AC,28DC
HC4-HSF-K
Panasonic Electric Works
Relay Sockets & Hardware FOR HC4 RELAYS FRONT WIRE Conn Relay Socket SKT 14 POS Screw ST Thru-Hole SOCKET SCRW FRONT WIRE HC4 RELAY Socket; Screw Terminal; PCB Mount; 67 mm; 27.8 mm; 30 mm RELAY SOCKET Socket,Relay;ScrewTerminal;PCBMount;67mm;27.8mm;30mm HC4 Relay Socket (4 POLE NON DIN RAIL) HC Series Socket Screw front wire for HC4 Relays 继电器插座, 适用于HC 系列继电器
HC4-SS-K
Panasonic Electric Works
Relay Sockets & Hardware 5A 115VAC 4PDT PLUG IN SOCKET SLD TAB W/CLIP HC4 RELAY Conn Relay Socket SKT 14 POS Solder Lug ST RELAY SOCKET (4 POLE, CHASSIS MOUNT)* HC Series Relay Socket 5 A 115 VAC 4PDT Plug-In Relay socket for HC4, HC4-SS-K, Panasonic

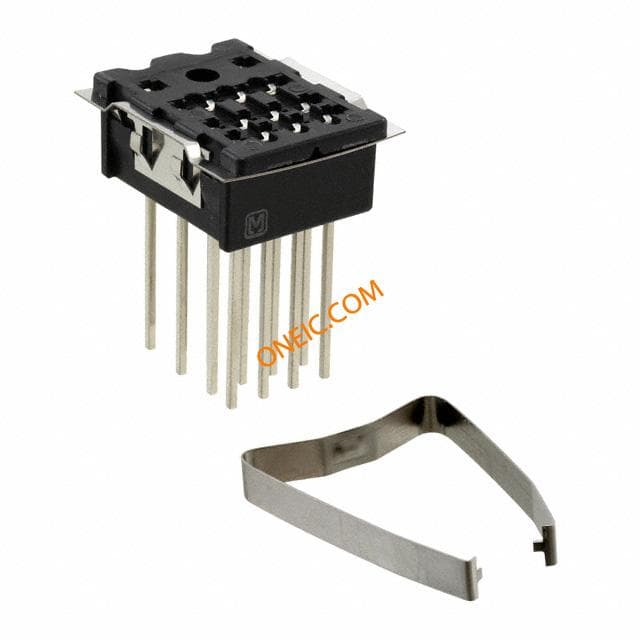

HC4-WS-K
