点击放大查看

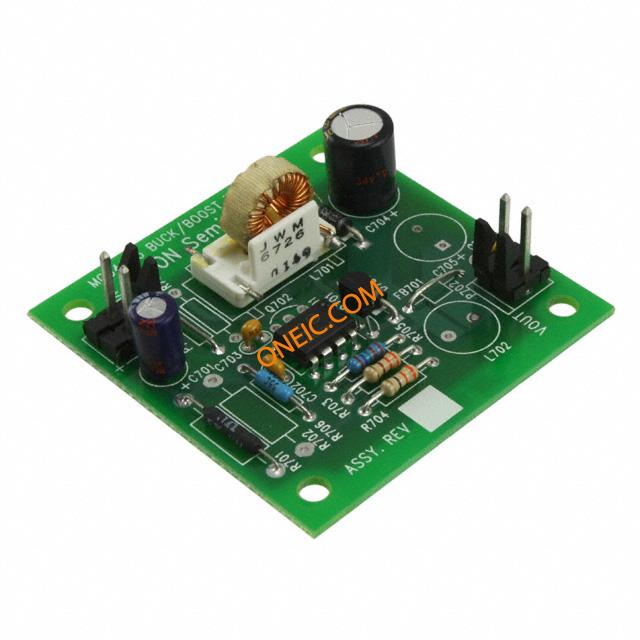

MC34063LBBEVB
| 制造商 | |
| 描述 | Power Management IC Development Tools MC34063A EVAL BRD EVAL BOARD FOR MC34063LBB |
| 分类 |
商业参数
| 产品 | Evaluation Boards | 其他名称 | MC34063LBBEVBOS |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 3 V to 40 V | 输出电流 | 1.5 A |
| 稳压器拓扑 | Buck-Boost | 开关频率 | 100kHz |
| 最小输入电压 | 3.3V | ||
机械参数
| 电路板厚度 | Fully Populated | ||
产品信息
| 类型 | DC/DC Converters, Regulators & Controllers | 内容 | Board |
| 功能 | 40 V / 15 A Leaded Boost Regulator | 主要用途 | DC/DC, Step Up or Down |
| 输出及类型 | 1, Non-Isolated | 工具类型/特性 | MC34063A |
| 使用的IC/零件 | MC34063 | ||
环境参数
| 机械寿命 | Obsolete | ||
文档与媒体
