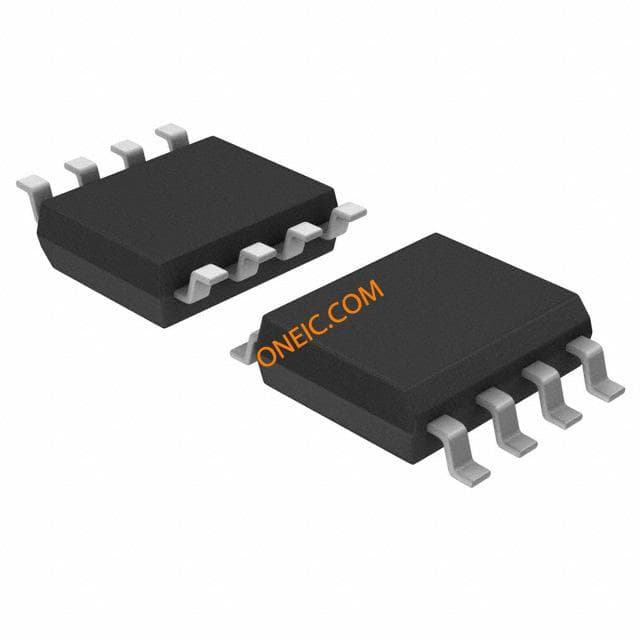

MC33063ADG
| 制造商 | onsemi |
| 描述 | DC DC Cntrlr Single-OUT Step Up/Step Down 3V to 40V Input 8-Pin SOIC N Rail 1.5 A, STEP-UP/DOWN/ INVERTING SWITCHING REGULATORS IC REG BUCK BOOST INV ADJ 8SOIC MC33063ADG, DC-DC Converter, 1.25 to 40V, Step-Down/Up, 8-Pin SOIC Voltage Regulators - Switching Regulators 40V 1.5A Buck/Boost/Inverting DC/DC CONVERTER, SMD, 33063, SOIC8 IC, STEP-UP/STEP-DOWN/INVERT REG, 8-SOIC MC33063ADG Switching Regulator 1.5 A SO-8, MC33063ADG, ON Semiconductor , 降压/升压稳压器, 1.5A, 1.25 → 40 V, 8针 SOIC封装 Switching Voltage Regulators 40V 1.5A Buck/Boost/Inverting |
| 分类 |
商业参数
| 产品 | Switching Regulators | 产品类别 | Voltage Regulators - Switching Regulators |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 98 |
| 标准封装名称 | SOIC | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423990 |
| 零件状态 | :33063 | 抗辐射加固 | No |
电气参数
| 频率 | :100kHz | 输出类型 | Adjustable |
| 转换器类型 | Step Down, Step Up | 稳压器类型 | :Switching, Step Down (Buck), Step Up (Boost), Inverting |
| 额定电压 | 1.25 to 40 V | 输出电流 | 1.5(Max) A |
| 供电电压 | 40(Max) V | 输出数量 | 1 |
| 供电类型 | :DC / DC Converter | 稳压器拓扑 | Step Up/Step Down |
| 开关频率 | 33kHz | 同步整流 | No |
| 最小输入电压 | 1.25 V ~ 40 V | 电压输出差（典型值）@ 距离 | :1.25V |
机械参数
| 宽度 | 4mm | 高度 | 1.5mm |
| 长度 | 5mm | 重量 | 0.000001 |
| 包装方式 | Tube | 引脚样式 | Gull-wing |
| 安装类型 | Surface Mount | 安装样式 | SMD/SMT |
| 引脚数 | :8 | 封装形式 | 8SOIC N |
| 冷却的封装 | SOIC N | 材料表面处理 | :- |
| 总长度 | 5(Max) | 包装数量 | SOIC N |
| 尺寸/外形 | 5 x 4 x 1.5mm | 位数 | 8 |
| 外壳尺寸-插件 | 1.5(Max) | 供应商器件封装 | 8-SOIC N |
产品信息
| 类型 | Step Up/Step Down | 已删除 | Compliant |
| 拓扑 | Boost, Buck | 基本单元 | :33063 |
| 印刷电路板数量 | 8 | ||
环境参数
| 工作温度 | -40 to 85 °C | 结工作温度 | 85C |
