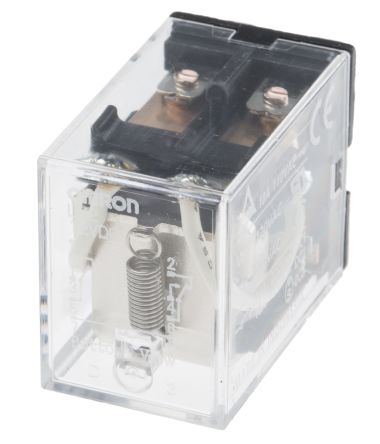

LY2-DC12

制造商	Omron Corporation
描述	General Purpose Relays PLUG-IN DPDT 12VDC Electromechanical Relay DPDT 10A 12VDC 160Ohm Socket RELAY GEN PURPOSE DPDT 10A 12V RELAY;E-MECH;GENPURP;DPDT;CUR-RTG10A;CTRL-V12DC;VOL-RTG250/125AC/DC;8PIN 欧姆龙(OMRON) 功率继电器 Relay General Purpose Standard Single contact Standard bracket mounting Base: Plug-in/solder terminals Amperage: 10 AMP Coil Voltage: 12 Vdc Configuration: DPDT Omron E5AN-Q3HMT-500 AC100-240 双刀双掷插入式非闭锁继电器, 10 A, 12V dc
分类	工业电源组件和继电器功率继电器，2安培以上专用继电器

对参数有疑问？问 AI 助手

商业参数

交货时间	23 Days	子类别	Electromechanical Relay
零件号别名	12VDC 1340935 LY2 LY212VDC	产品类别	General Purpose Relays
标准包装数量	50	工厂包装数量	50

合规参数

RoHS	RoHS Compliant	欧盟RoHS	Compliant
抗辐射加固	No

电气参数

电流	10 Amps	线圈类型	Non Latching
线圈功率	900 mW	线圈电流	75 mA
线圈电压	12V	释放时间	25ms
额定功率	240W\|1.1kVA	可见输出	No
额定电压	125	线圈电阻	160 Ohms
推频（MHz/V）	No	供电电压	12 VDC
开关电压	250 VAC, 125 VAC	峰值脉冲功率	1.1 kVA
Vgs(th)（最大）@ Id	1.2 VDC	钳位电压	9.6VDC
额定交流电压	250V	开关电流	1,100VA, 240W
额定直流电流	240 W	二极管配置	No
最大额定电流	10 A	最小负载要求	100mA @ 5VDC
最小输入电压	1.2VDC	交流开关电压	250V
直流开关电压	125V	平均正向功率	0.9 W
集电极-发射极饱和电压（最大）@ Vge, Ic	9.6 VDC	触点额定电流	10 A
峰值脉冲电流（8/20µs）	10 A	每极负载侧连接方式	10A @110VAC/24VDC
直流反向电压（Vr）（最大）	125V	高侧电压（自举）最大	9.6VDC

机械参数

密封	Unsealed	深度	21.5 mm
高度	42.4 mm	长度	21.5mm
包装方式	Bulk	触点形式	2 Form C (DPDT-BM)
安装类型	Socket	安装样式	Through Hole
封装形式	Dust Cover	冷却的封装	Dust Cover
触头材料	Silver Alloy	总长度	28 mm
尺寸/外形	21.5 x 36 x 28mm	端接样式	Quick Connect
触点数	8	接触件端接	Pin
绝缘材料 - 类型	2kV ac	位数	8
典型触点布局	DPDT

产品信息

类型	General Purpose Relay	功能	Single Side Stable
继电器类型	Non-Latching	应用领域	通用，电源
按下测试类型	No	卡标准	General Purpose Relay
行业别名	LY2-DC12

环境参数

额定寿命	500,000 ops	动作时间	25ms
工作寿命	100000000（机械）次操作，500000（电气）次操作	工作温度	-25°C ~ 55°C

文档与媒体

PDF 文档

ly_dsheet_gwj002-e2-10.pdf

PDF 文档

LY_0911.pdf

PDF 文档

LY Series

PDF 文档

1514130.pdf

PDF 文档

ly_dsheet_gwj002-e2-10-48034.pdf
