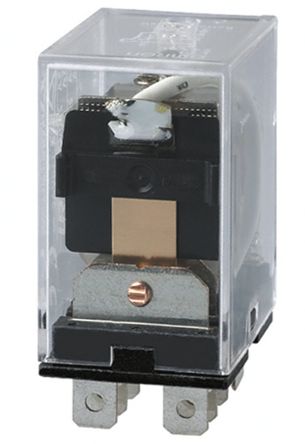

LY1-DC12
| 制造商 | Omron Corporation |
| 描述 | General Purpose Relays PLUG-IN SPDT 12VDC Electromechanical Relay SPDT 15A 12VDC 160Ohm Socket RELAY GEN PURPOSE SPDT 15A 12V POWER RELAY, SPDT, 12VDC, 15A, PLUG IN RELAY;E-MECH;GENPURP;SPDT;CUR-RTG15A;CTRL-V12DC;VOL-RTG250/125AC/DC;8PIN 欧姆龙(OMRON) 中间继电器 Relay General Purpose Standard Single contact Standard bracket mounting Base: Plug-in/solder terminals Amperage: 15 AMP Coil Voltage: 12 Vdc Configuration: SPDT Omron E53-CNH03N2 单刀双掷 插入式 非闭锁继电器, 15 A, 12V dc |
| 分类 |
商业参数
| 交货时间 | 56 Days | 子类别 | Electromechanical Relay |
| 零件号别名 | 1075888 | 产品类别 | General Purpose Relays |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85364110 | ||
电气参数
| 线圈类型 | Non-Latching | 线圈功率 | 900 mW |
| 量程（°/s） | :OMRON - LY Series | 线圈电流 | 75 mA |
| 释放时间 | 25ms | 额定功率 | 360W|1.7kVA |
| 可见输出 | No | 额定电压 | 125 |
| 线圈电阻 | 160 Ohms | 推频（MHz/V） | No |
| 输出电流 | :15A | 供电电压 | 12 VDC |
| 开关电压 | 250 VAC, 125 VDC | Vgs(th)（最大）@ Id | 1.2 VDC |
| 钳位电压 | 9.6VDC | 二极管配置 | No |
| 最大额定电流 | 15 | 触点电压（最大） | :110V |
| 最小输入电压 | 1.2VDC | 平均正向功率 | 0.9 W |
| 集电极-发射极饱和电压（最大）@ Vge, Ic | 9.6 VDC | 触点额定电流 | 15 A |
| 数字供电电压 | :24V | ||
机械参数
| 密封 | Unsealed | 深度 | 28 |
| 宽度 | 27.94 mm | 高度 | 36.06 mm |
| 长度 | 21.59 mm | 重量 | 0.032 |
| 包装方式 | Bulk | 触点形式 | 1 Form C (SPDT-BM) |
| 安装类型 | Socket | 安装样式 | Through Hole |
| 冷却的封装 | Dust Cover | 触头材料 | Silver Alloy |
| 总长度 | 21.5 | 端接样式 | Quick Connect |
| 触点数 | 8 | 接触件端接 | Pin |
| 典型触点布局 | SPDT | ||
产品信息
| 类型 | General Purpose Relay | 系列 | LY |
| 继电器类型 | Non-Latching | 行业别名 | LY1-DC12 |
环境参数
| 动作时间 | 25ms | 工作温度 | -25°C ~ 55°C |
