点击放大查看
L50J5R0E
| 制造商 | Ohmite Manufacturing Company |
| 描述 | Wirewound Resistors - Chassis Mount 50watt 5ohm 5% RES CHAS MNT 5 OHM 5% 50W Resistor;Wirewound;Res 5 Ohms;Pwr-Rtg 50 W;Tol 5%;Lug;Tubular Wirewound Resistors 50watt 5ohm 5% Res Wirewound 5 Ohm 5% 50W ±400ppm/°C Ceramic Silicon RDL Lug Bolt-On RESISTOR, POWER, 5 OHM, 50W, 5% Resistor; Wirewound; Res 5 Ohms; Pwr-Rtg 50 W; Tol 5%; Lug; Vitreous Enamel |
| 分类 |
商业参数
| 产品 | Power Resistors Wirewound Vitreous Enamel | 产品类别 | Wirewound Resistors - Chassis Mount |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85331000 |
电气参数
| 容差 | 5 % | 电阻 | 5 Ohms |
| 量程（°/s） | :OHMITE - L50 Series | 功率（瓦） | 50W |
| 额定功率 | 50 W | 额定电压 | 1.625 kV |
| 电阻值（欧姆） | 5 | 峰值脉冲功率 | 50 W |
| 电阻公差 | :± 5% | 基极电阻（R1） | :Wirewound |
机械参数
| 重量 | 0.045 | 直径 | 14.3 mm |
| 包装方式 | Bulk | 引脚样式 | Solder Lugs |
| 端接方式 | Lug | 封装形式 | Radial, Tubular |
| 冷却的封装 | Vitreous Enamel | 磁芯材质 | Wirewound |
| 安装特性 | Brackets (not included) | 尺寸/外形 | 14.3 mm Dia. x 101.6 mm L |
| 端接样式 | Solder Lug | 涂层、外壳类型 | Vitreous Enamel Coated |
产品信息
| 类型 | Vitreous Enamel Power Wirewound Resistors | 系列 | 270 |
| 产品特性 | Flame Retardant Coating | 成分 | Wirewound |
环境参数
| 工作温度 | + 25 C to + 350 C | 温度系数 | 400 PPM / C |
文档与媒体
相关型号
9B-10
Ohmite
Resistor Hardware RES MOUNTING BKT MTG BRACKET D-77159 PACK OF 10
9S-10
Ohmite
Resistor Hardware RES MOUNTING BRACKET MOUNTING BRACKET 25/50/75W
6010E
Ohmite
Resistor Hardware 0.75" MICAWSHR 100PK Resistor Hardware 0.75' MICAWSHR 100PK WASHER, MICA D85849 BAG OF 100 Resistor Hardware 0.75' MICAWSHR
L50J5R0
Ohmite
Wirewound Resistors - Chassis Mount 50watt 5ohm 5% RES CHAS MNT 5 OHM 5% 50W Wirewound Resistors 50watt 5ohm 5% Res Wirewound 5 Ohm 5% 50W ±400ppm/°C Vitreous Enamel RDL Lug Bolt-On RESISTOR, POWER, 5 OHM, 50W, 5%

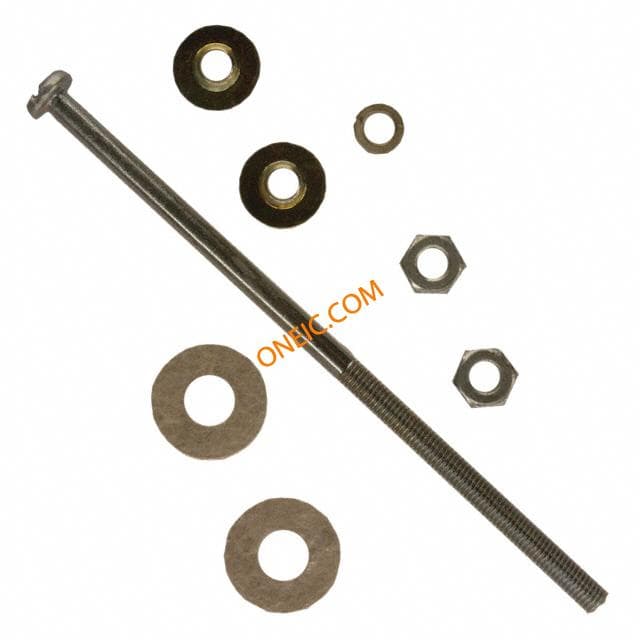

7PA50
