点击放大查看

L50J1K5

制造商	Ohmite Manufacturing Company
描述	Wirewound Resistors - Chassis Mount 50watt 1.5K 5% RES CHAS MNT 1.5K OHM 5% 50W Wirewound Resistors 50watt 1.5K 5% Res Wirewound 1.5K Ohm 5% 50W ±260ppm/°C Ceramic Silicon RDL Lug Bolt-On
分类	电阻器与电位器底盘安装电阻底盘安装电阻

对参数有疑问？问 AI 助手

商业参数

产品	Power Resistors Wirewound Vitreous Enamel	交货时间	56 Days
子类别	Resistor Fixed Single-Other Mounting	产品类别	Wirewound Resistors
标准包装数量	1

合规参数

RoHS

Contains lead / RoHS non-compliant

电气参数

容差	±5%	电阻	1.5 kOhms
功率（瓦）	50W	额定功率	50 W
额定电压	1.625 kV	电阻值（欧姆）	1.5k

机械参数

直径	14.3 mm	包装方式	Bulk
引脚样式	Solder Lugs	封装形式	Radial, Tubular
安装特性	Brackets (not included)	尺寸/外形	0.563" Dia x 4.000" L (14.30mm x 101.60mm)
端接样式	Solder Lug	涂层、外壳类型	Vitreous Enamel Coated

产品信息

类型	Vitreous Enamel Power Wirewound Resistors	系列	270
产品特性	Flame Retardant Coating	成分	Wirewound
适用产品/相关产品	L50J1K5E

环境参数

工作温度

+ 25 C to + 350 C

温度系数

±260ppm/°C

文档与媒体

PDF 文档

270 Series

PDF 文档

res_270.pdf

相关型号

9B-10

Ohmite

Resistor Hardware RES MOUNTING BKT MTG BRACKET D-77159 PACK OF 10

¥5.1000

详情

9S-10

Ohmite

Resistor Hardware RES MOUNTING BRACKET MOUNTING BRACKET 25/50/75W

¥6.6422

详情

暂无图片

6010E

Ohmite

Resistor Hardware 0.75" MICAWSHR 100PK Resistor Hardware 0.75' MICAWSHR 100PK WASHER, MICA D85849 BAG OF 100 Resistor Hardware 0.75' MICAWSHR

¥1.5776

详情

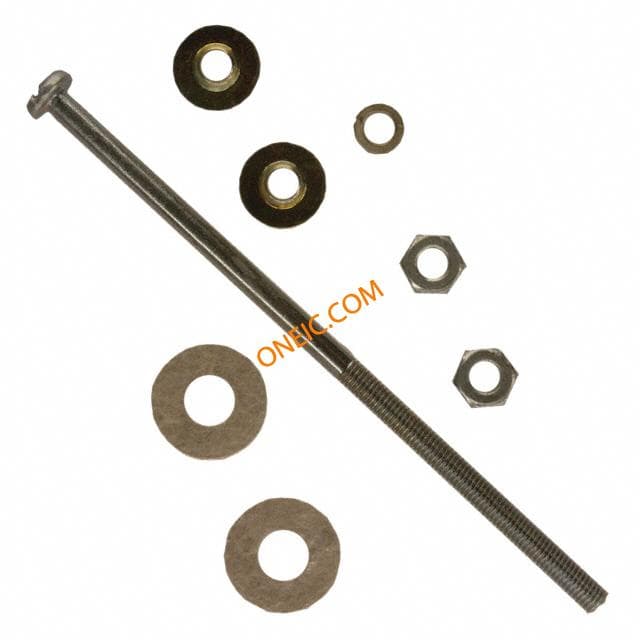

7PA50
