L100J150

制造商	Ohmite Manufacturing Company
描述	Wirewound Resistors - Chassis Mount 100watt 150ohm 5% RES CHAS MNT 150 OHM 5% 100W Wirewound Resistors 100watt 150ohm 5% Res Wirewound 150 Ohm 5% 100W ±260ppm/°C Ceramic Silicon RDL Lug Bolt-On RESISTOR, POWER, 150 OHM, 100W, 5%
分类	电阻器与电位器底盘安装电阻底盘安装电阻

对参数有疑问？问 AI 助手

商业参数

产品	Power Resistors Wirewound Vitreous Enamel	交货时间	56 Days
子类别	Resistor Fixed Single-Other Mounting	产品类别	Wirewound Resistors - Chassis Mount
标准包装数量	1

合规参数

RoHS

RoHS Compliant

海关税号

85331000

电气参数

容差	5 %	电阻	150 Ohms
量程（°/s）	:OHMITE - L100 Series	功率（瓦）	100W
额定功率	100 W	额定电压	2.845 kV
电阻值（欧姆）	150	电阻公差	:± 5%
基极电阻（R1）	:Wirewound

机械参数

重量	0.091	直径	19.1 mm
包装方式	Bulk	引脚样式	Solder Lugs
封装形式	Radial, Tubular	安装特性	Brackets (not included)
尺寸/外形	19.1 mm Dia. x 165.1 mm L	端接样式	Solder Lug
涂层、外壳类型	Vitreous Enamel Coated

产品信息

类型	Vitreous Enamel Power Wirewound Resistors	系列	270
产品特性	Flame Retardant Coating	成分	Wirewound
适用产品/相关产品	L100J150E

环境参数

工作温度

+ 25 C to + 350 C

温度系数

260 PPM / C

文档与媒体

PDF 文档

270 Series

PDF 文档

res_270-231448.pdf

相关型号

暂无图片

12S-10

Ohmite

Resistor Hardware RES MOUNTING BKT MOUNTING BRACKETS PACK OF 10

¥8.2280

详情

暂无图片

12BE-10

Ohmite

Resistor Hardware RES MOUNTING BKT MOUNTING BRACKETS PACK OF 10

¥7.9560

详情

暂无图片

12B-10

Ohmite

Resistor Hardware RES MOUNTING BKT MOUNTING BRACKETS PACK OF 10

¥129.5400

详情

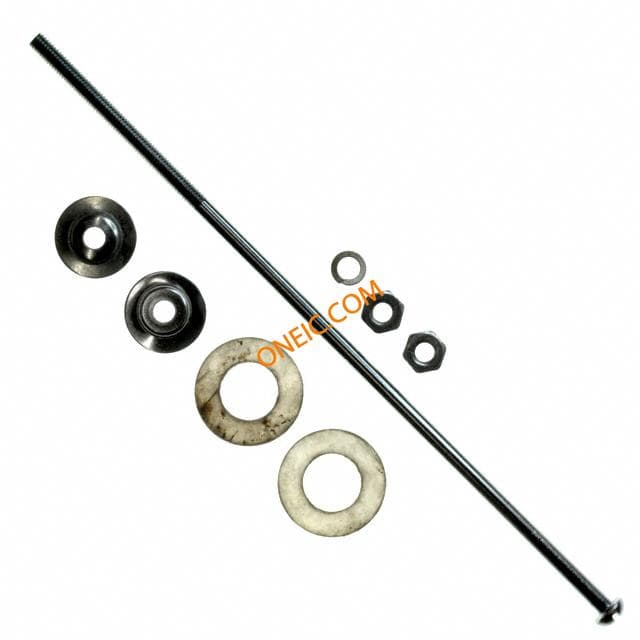

7PA100

Ohmite

Resistor Hardware 7.313" #10 THRU-BOLT MOUNTING HDWR THRU BOLT 100WATT Resistor Hardware 7.313' #10 THRU-BOLT Thru-Bolts And Mounting Brackets

¥43.9008

详情

暂无图片

12-100

Ohmite

Resistor Hardware RES MOUNTING BKT BRACKET MOUNTING FOR 100W RES

¥4.7600

详情

7PA100E

Ohmite

Resistor Hardware 7.313" #10 THRU-BOLT MOUNTING HDWE THRU BOLT 7.313 Kit; Resistor; Thru Bolt Mounting Resistor Hardware 7.313' #10 THRU-BOLT THRU-BOLT, 200/210/270 RESISTOR Kit, Resistor, Thru Bolt Mounting

¥45.3000

详情

12SE-10

Ohmite

Resistor Hardware RES MOUNTING BKT MOUNTING BRACKETS PACK OF 10 MOUNTING BRACKET, 200/210/270 RES

¥7.8200

详情

12E-100

Ohmite

Resistor Hardware RES MOUNTING BKT BRACKET MOUNTING FOR 100W RES Resistor; Mounting Clip MOUNTING BRACKET, 210/270 RESISTOR Hardware, Mounting Clip, Resistor, Standard Plated Steel

¥4.0474

详情

12SE-100

Ohmite

Resistor Hardware RES MOUNTING BKT MOUNTING BRACKET PACK OF 100 Resistor; Mounting Clip; Hardware, Mounting Bracket, For 100 WattResistors , Spring Steel

¥7.6840

详情

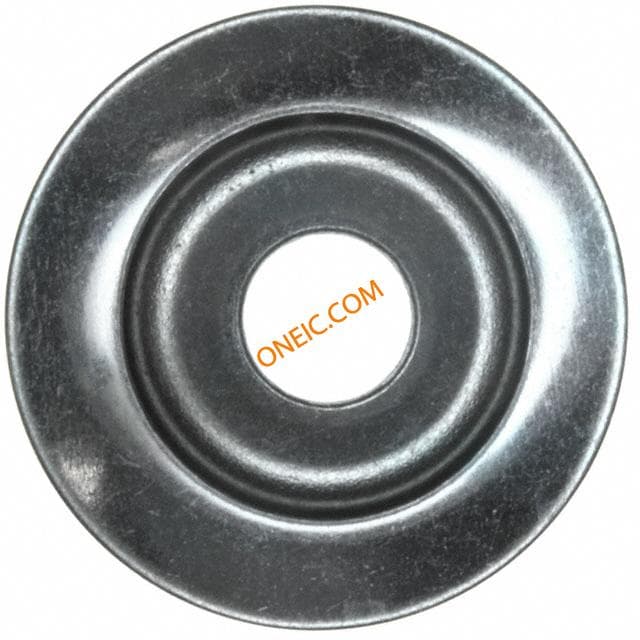

6001E

Ohmite

WASHER CENTERING 100W RESISTOR Mounting; 100 W; Washer; #10; 0.75 in. (Outer); 0.190 in. (Inner) WASHER Mounting; 100 W; Washer; #10; 0.75 In. (Outer), 0.190 In. (Inner)

¥1.7184

详情

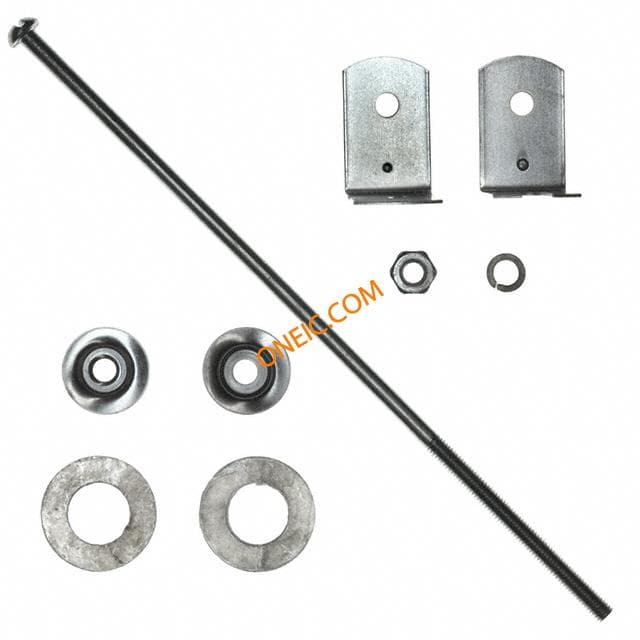

6104-6 1-2E
