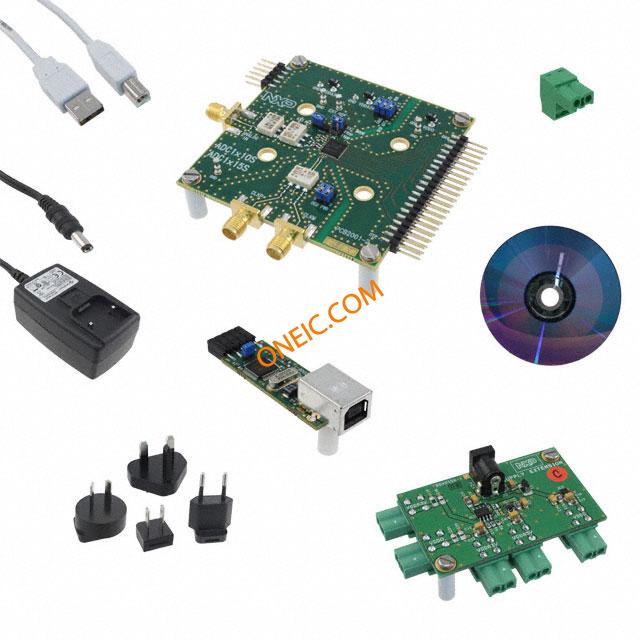

ADC1415S125/DB,598

制造商	NXP Semiconductors N.V.
描述	Data Conversion IC Development Tools ADC1415 Dev Board BOARD DEMO FOR ADC1415S125
分类	嵌入式系统与开发工具嵌入式开发工具数据转换板

对参数有疑问？问 AI 助手

商业参数

产品	Demonstration Boards	其他名称	568-5094
标准包装数量	1

合规参数

RoHS

RoHS Compliant

电气参数

接口	USB, SPI	输入范围	1 ~ 2 Vpp
数据接口	Serial, SPI™	位数	14
供电电压	1.8 V, 3 V, 5 V	ADC/DAC 数量	1
典型功耗（条件）	840mW @ 125MSPS	采样率（每秒）	125M

产品信息

类型	ADC	内容	Board
工具类型/特性	ADC1415	使用的IC/零件	ADC1415S125

环境参数

工作温度

-40°C ~ 85°C

文档与媒体

PDF 文档

ADC1415S Series
