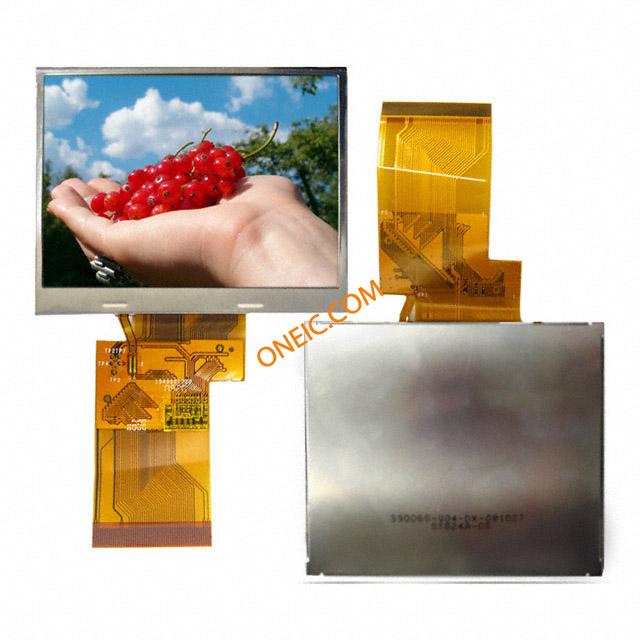

NHD-3.5-320240MF-ATXL#-1
| 制造商 | Newhaven Display International, Inc. |
| 描述 | TFT Displays & Accessories 3.5 320 x 240 DPI 76.9 x 63.8 x 3.3 LCD DISP TFT 3.5" 320X240 B/L 3.5in Diagonal 320x240Pixels Parallel LED Backlight 3.3V Power Supply 54-Pin |
| 分类 |
商业参数
| 产品 | Displays | 其他名称 | NHD35320240MFATXL1 |
| 产品类别 | TFT Displays & Accessories | 标准包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 背光 | White LED | 接口 | 24 bit Digital RGB |
| 分辨率 | 320 x 240 | 显示类型 | TFT |
| 供电电压 | 3.3 V | 平均整流电流 Io | 8.6 mA |
机械参数
| 尺寸 | 76.9 mm x 63.9 mm x 2.8 mm | 包装方式 | Bulk |
| 底色 | Normally Black | ||
产品信息
| 像素点数 | 320 x 240 (QVGA) | 触摸屏 | No |
| 显示模式 | Transmissive | 可视区域 | 70.08 mm x 52.96 mm |
| 屏幕对角线尺寸 | 3.5 in | 其他规格 | No Touch Panel |
环境参数
| 工作温度 | - 20 C to + 70 C | ||
文档与媒体
相关型号
046240054005800+
avx / elco
Conn FFC/FPC Connector SKT 54 POS 0.5mm Solder RA SMD T/R CONN FPC ONE-TOUCH LCK .5MM 54 FFC & FPC Connectors 54P ZIF RIGHT ANGLE SMT
NHD-COG14-36
Newhaven Display
TFT Displays & Accessories Various Pitch SMT-thru-hole adptr ADAPTER SMT TO 2.54MM THRU-HOLE Various Pitch SMT Adapter To 2.54mm Thru-Holes
NHDEV DEVELOPMENT BOARD
Newhaven Display
Display Development Tools LCD Development Brd 100 mm x 95 mm BOARD DEV LCD COG TFT 100X95MM
0512965494
Molex
Conn FFC/FPC Connector SKT 54 POS 0.5mm Solder RA SMD Embossed T/R CONN FFC/FPC 54POS ZIF .5MM SMD
NHD-3.5-320240MF-20
Newhaven Display Intl
BOARD CTRLR FOR NHDEV 3.5 TFT

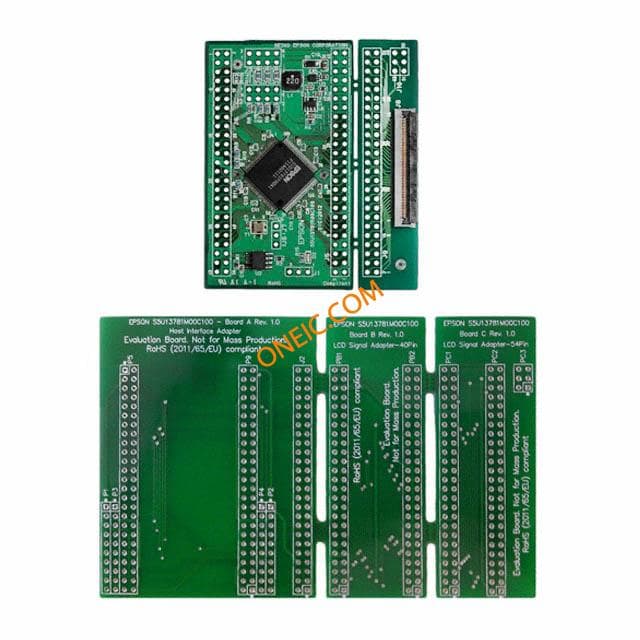

S5U13781R00C10M
Epson Electronics America Inc-Semiconductor Div
BOARD EVAL BOOSTERPACK S1D13781 Display Development Tools S1D13781 BoosterPack LCDC Development Pkg
NHD-3.5-320240MF-VIDEO BOARD V1.1
Newhaven Display Intl
BOARD DEMO 3.5 SVIDEO 12V
(SN).jpg&w=3840&q=75)

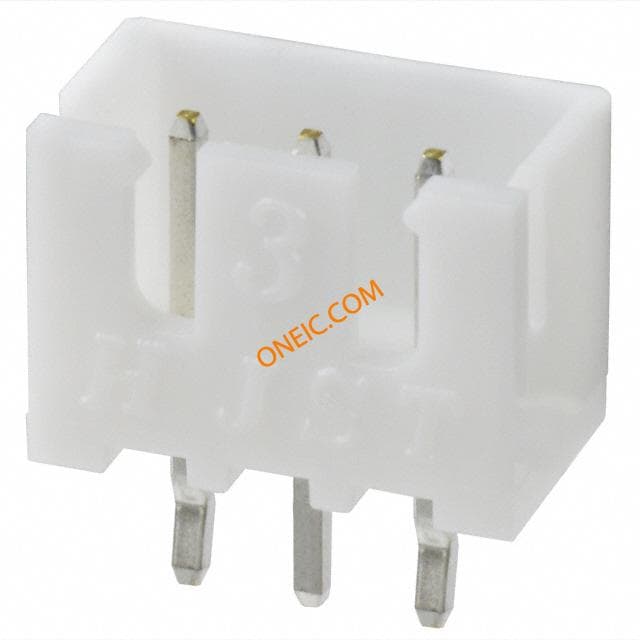

B3B-XH-A (LF)(SN)(P)
